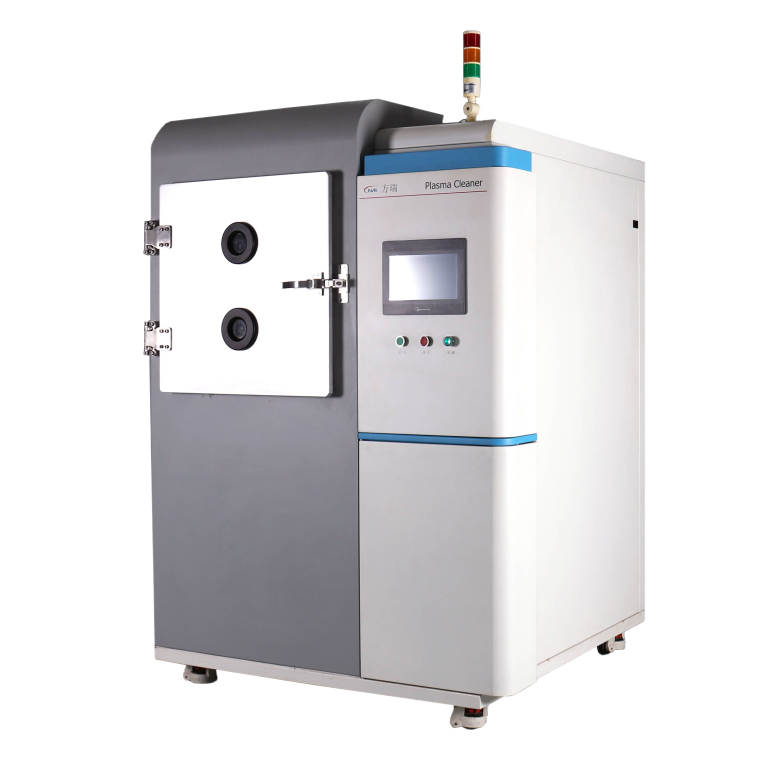

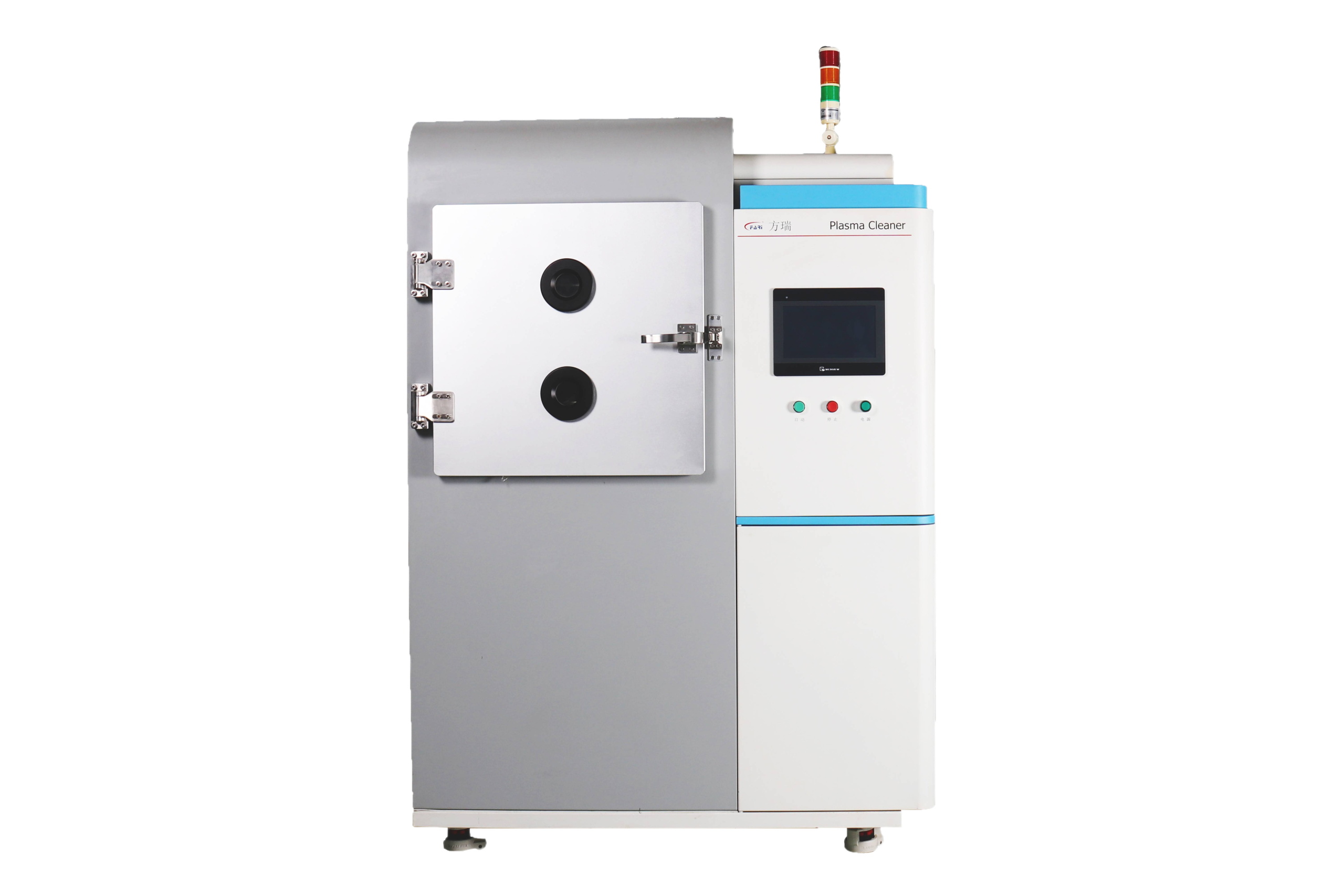

125L Industrial Vacuum Plasma Cleaner

A 125L vacuum plasma cleaner with PLC + touchscreen control, customizable stainless steel or aluminum chamber, dual-frequency RF (40 kHz / 13.56 MHz) and 10 Pa vacuum for large-scale production and research applications.

Large 125L Vacuum Chamber.
PLC + Touchscreen Control, Easy Operation.
Customizable Chamber Materials and Layout.

Get A Quote Tech Specs

Tech Specs

Product Name	Vacuum Plasma Cleaner
Model	GD-125
Control System	PLC + Touchscreen
Power Frequency	40 kHz / 13.56 MHz
Supply Voltage	AC 380V (±10V)
Power Rating	1000 W (adjustable)
Gas Channels	2-channel proportional valve flow control
Process Control	Automatic and Manual modes
Inner Chamber Size	500 × 500 × 500 mm
Chamber Material	Stainless steel or Aluminum (optional)
Carrier / Rack Spec	W465 × D425 mm, standard 8 layers
Overall Dimensions	1350 × 1290 × 1860 mm (L × D × H)
Chamber Volume	125 L
Vacuum Level	10 Pa
Compatible Gases	Argon, Oxygen, Nitrogen, Air, H2+N2 (mixed) etc.

Key Features

User-Friendly PLC Control

Integrated PLC with a full-color touchscreen provides intuitive recipe management, precise parameter setting and step sequencing for repeatable production cycles and simplified operator training.
Dual Frequency Power System

Supports 40 kHz and 13.56 MHz excitation to optimize plasma characteristics for different materials and processes, improving cleaning, activation and surface treatment uniformity.
Large Customizable Chamber

125 L vacuum chamber with selectable stainless steel or aluminum construction and customizable internal fixtures to accommodate large parts, racks or batch production layouts.
Precise Gas Flow Control

Two-channel proportional valve gas control allows accurate mixing and flow adjustment of process gases, enabling fine tuning of plasma chemistry for cleaning, activation or surface modification.
Adjustable RF Power Output

Up to 1000 W of adjustable RF power ensures scalable treatment intensity for delicate or heavy-duty substrates, enabling process flexibility from lab to mass production.
Vacuum & Process Flexibility

Capable of reaching 10 Pa vacuum and operating in both automatic and manual modes for repeatable production or experimental research, supporting a wide range of industrial applications.

Plasma Cleaning Process

Plasma Generation

Process gas is energized and converted into a reactive plasma containing ions, electrons, and radicals.
Plasma–Surface Interaction

High-energy plasma species reach the material surface and interact with contaminants at the molecular level.
Chemical Reaction

Reactive ions and radicals break down organic residues and surface contaminants through controlled chemical reactions.
Volatilization

The reaction products are converted into volatile compounds and enter the gas phase.
Removal from Surface

Gaseous by-products desorb from the surface and are evacuated, leaving a clean, activated material surface.
