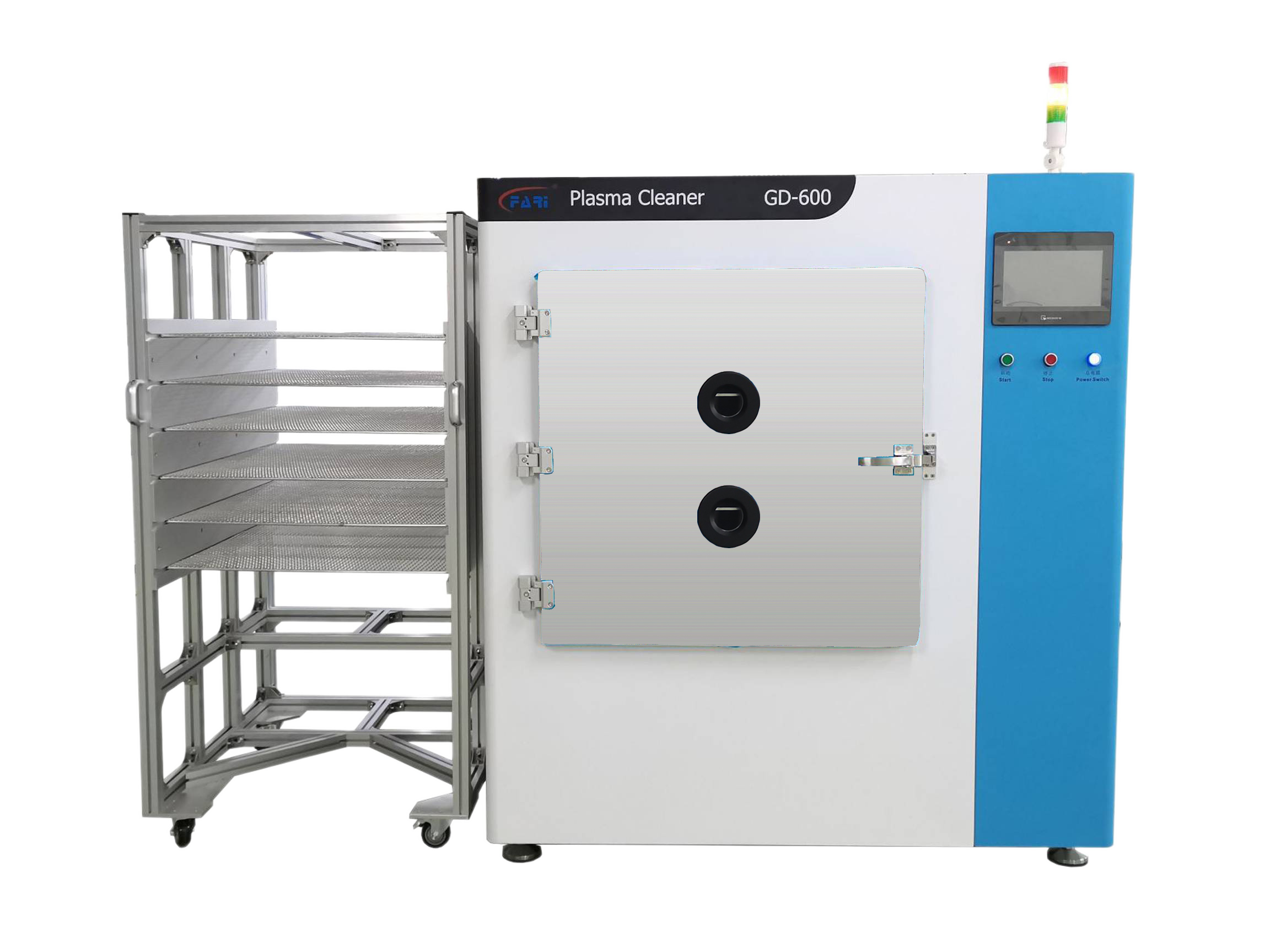

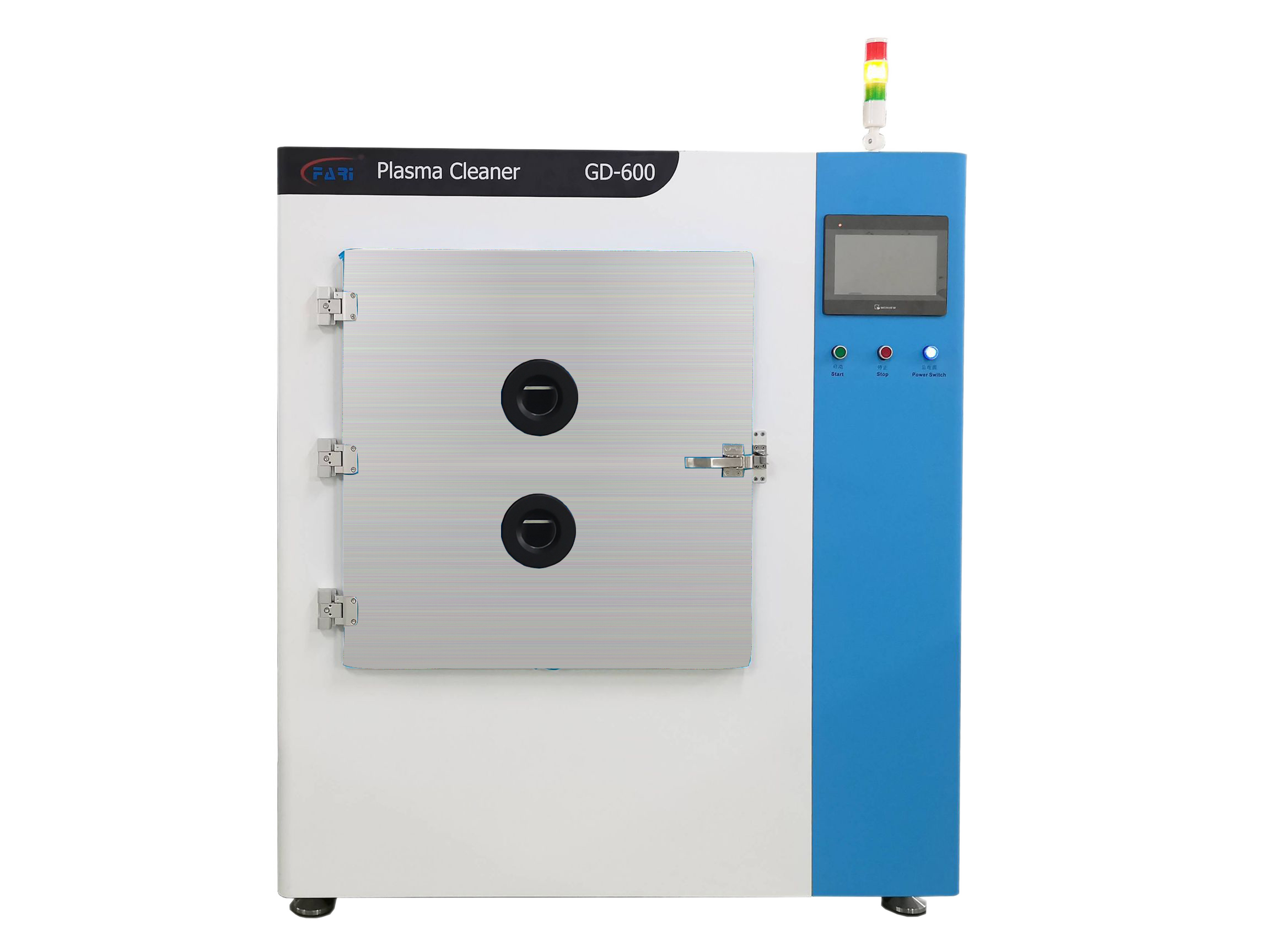

600L Vacuum Plasma Cleaning System

600L vacuum plasma cleaner with PLC touchscreen control, corrosion-resistant 316 stainless steel and aluminum alloy chamber, adjustable 100–5000W power and uniform electrode design for scalable production and lab use.

600L High Capacity.
PLC+Touchscreen Control,Easy Operation.
Adjustable 100–5000W Power.

Get A Quote Tech Specs

Tech Specs

Product Name	Vacuum Plasma Cleaner
Model	GD-600
Power Supply	Three-phase five-wire 380V
Plasma Power	100W-5000W (adjustable)
Plasma Frequency	40 KHz
Weight	1000 kg
Dimensions	D1338.5mm × W1520mm × H1600mm
Operating Temperature Range	-10°C to +40°C
Storage Conditions	Temperature: -25°C to 60°C; Humidity: ≤93%

Key Features

Wide Adjustable Power Range

High power adjustable plasma from 100W to 5000W allows fine control over cleaning and activation processes for a wide range of materials, enabling repeatable treatment across production batches.
Large Corrosion‑Resistant Chamber

Large 600L vacuum chamber constructed from 316 stainless steel and imported aluminum alloy offers corrosion resistance and optional customization to accommodate large-scale production or specialized experimental fixtures.
Intuitive PLC Touchscreen Control

PLC with full-color touchscreen control simplifies operation and maintenance, providing intuitive menus, parameter storage and easy integration into automated production lines with minimal operator training.
Uniform Plasma Electrode Design

Unique electrode architecture ensures uniform plasma distribution across the chamber, delivering consistent surface treatment and reducing process variability for improved product quality and yield.
Reliable Environmental Performance

Precise environmental control supports operating temperatures from -10°C to +40°C and storage conditions down to -25°C, maintaining reliable performance and stability in varied manufacturing environments.
Versatile Industry Compatibility

Designed for multiple sectors including semiconductors, medical devices, automotive components and packaging, with adjustable frequency and process parameters to tailor treatments for diverse substrate types.

Plasma Cleaning Process

Plasma Generation

Process gas is energized and converted into a reactive plasma containing ions, electrons, and radicals.
Plasma–Surface Interaction

High-energy plasma species reach the material surface and interact with contaminants at the molecular level.
Chemical Reaction

Reactive ions and radicals break down organic residues and surface contaminants through controlled chemical reactions.
Volatilization

The reaction products are converted into volatile compounds and enter the gas phase.
Removal from Surface

Gaseous by-products desorb from the surface and are evacuated, leaving a clean, activated material surface.
