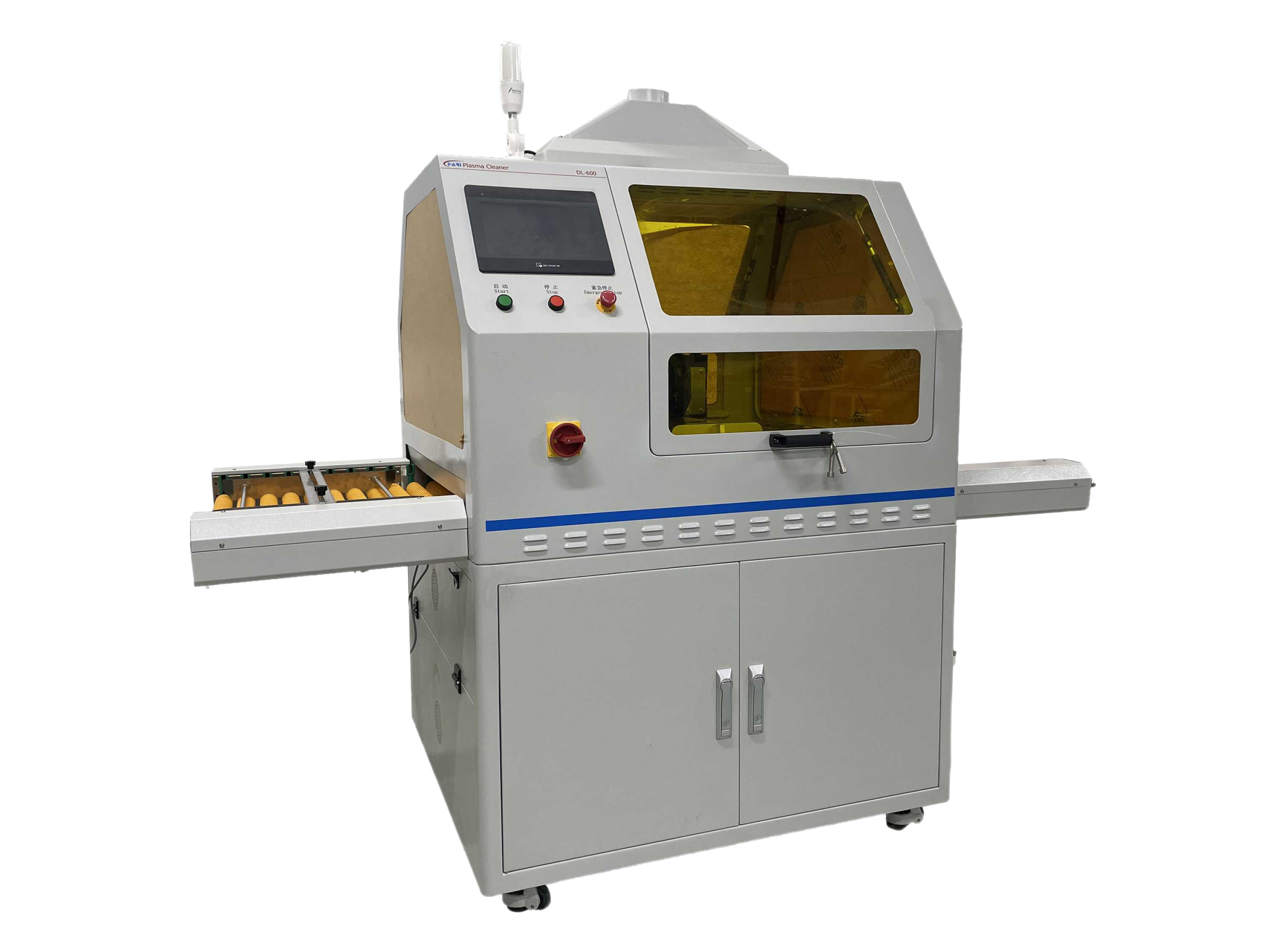

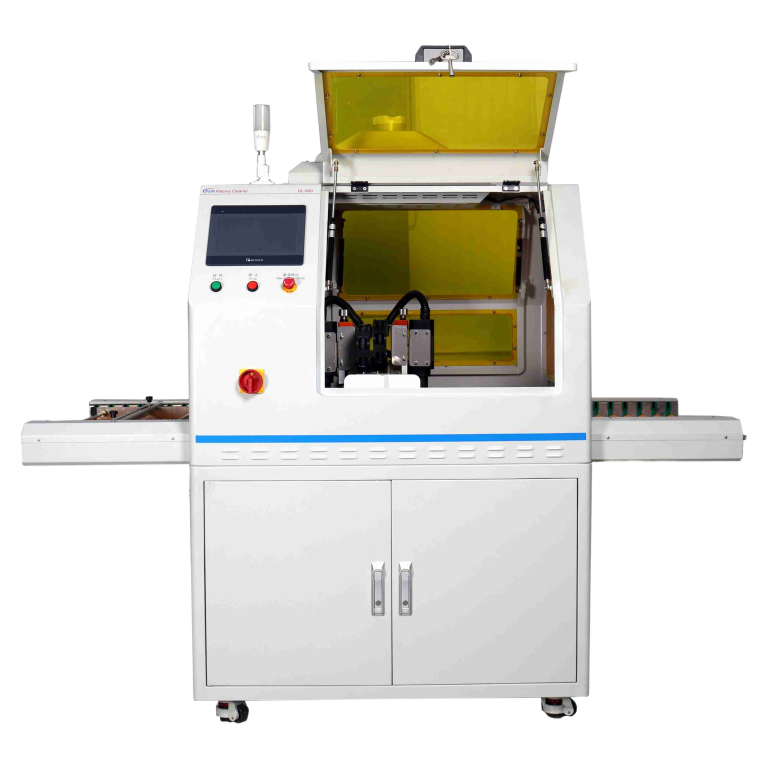

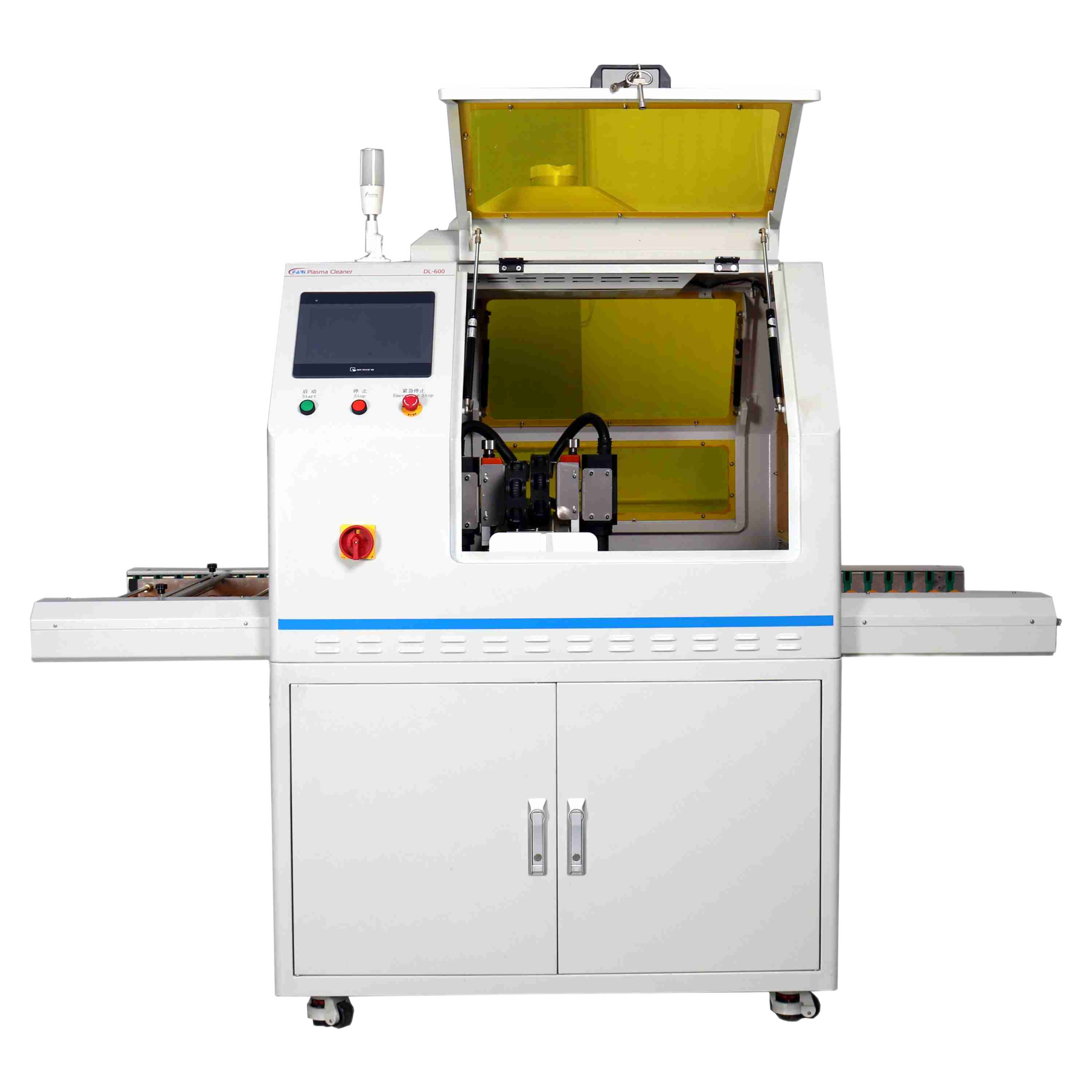

DL-600 Inline Reciprocating Plasma Machine

The DL-600 is an inline reciprocating plasma surface treatment machine with four 1000W heads, 560mm max processing width, 10mm adjustable gap (±4mm), and integrated alarms for reliable inline operation.

High Power 4-Head Array.
Adjustable Head-to-Substrate Gap.
Integrated Fault Alarm System.

Get A Quote Tech Specs

Tech Specs

Model	DL-600
Dimensions	2013 × 1100 × 1743 mm
Maximum Processing Width	560 mm
Plasma Head Count	4
Output Power per Head	1000 W
Head-to-Substrate Distance	10 mm (±4 mm)
Power Supply	AC 220 V (±10 V)
Alarm Functions	Pressure, voltage, conveyor fault, servo fault, material shortage alarms

Key Features

High Power Multi-Head Output

Equipped with four independently driven plasma heads delivering 1000W each, the DL-600 provides uniform, high-energy surface activation for consistent treatment across wide substrates in continuous production.
Wide Processing Width Capability

Processes materials up to 560 mm wide, enabling flexible handling of medium-sized components and roll-to-roll substrates, reducing line changeovers and improving throughput for varied production needs.
Precise Gap and Position Control

Head-to-substrate distance is adjustable to 10 mm ±4 mm, ensuring precise control of treatment intensity and repeatable surface activation for sensitive materials and tight process windows.
Integrated Safety and Alarm System

Built-in monitoring and alarm functions for gas pressure, supply voltage, conveyor faults, servo errors, and material feed issues provide fast alerts to minimize downtime and protect product quality.
Compact Inline Production Design

With a compact footprint (2013 × 1100 × 1743 mm), the DL-600 integrates easily into existing production lines, offering space-efficient installation without sacrificing robust processing capabilities.
User-Friendly Operation and Controls

Designed for straightforward operation and quick setup, the DL-600 reduces operator training time and supports repeatable, high-yield treatments for mixed-production environments and continuous operation.

Plasma Cleaning Process

Plasma Generation

Process gas is energized and converted into a reactive plasma containing ions, electrons, and radicals.
Plasma–Surface Interaction

High-energy plasma species reach the material surface and interact with contaminants at the molecular level.
Chemical Reaction

Reactive ions and radicals break down organic residues and surface contaminants through controlled chemical reactions.
Volatilization

The reaction products are converted into volatile compounds and enter the gas phase.
Removal from Surface

Gaseous by-products desorb from the surface and are evacuated, leaving a clean, activated material surface.
