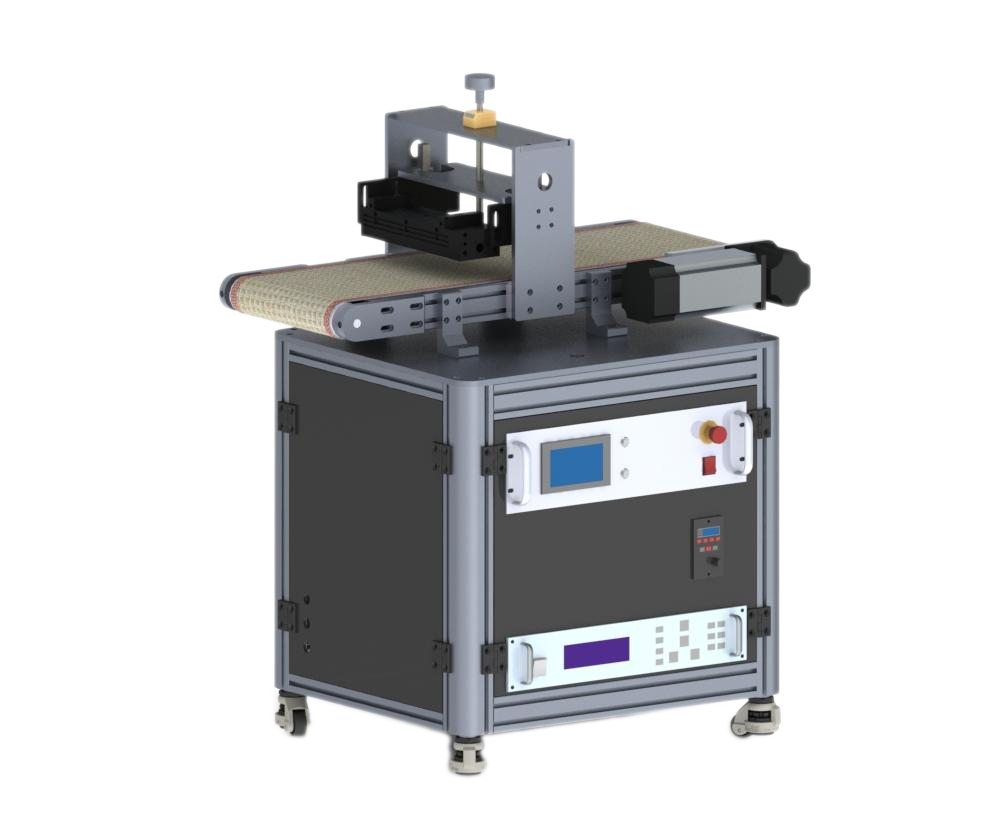

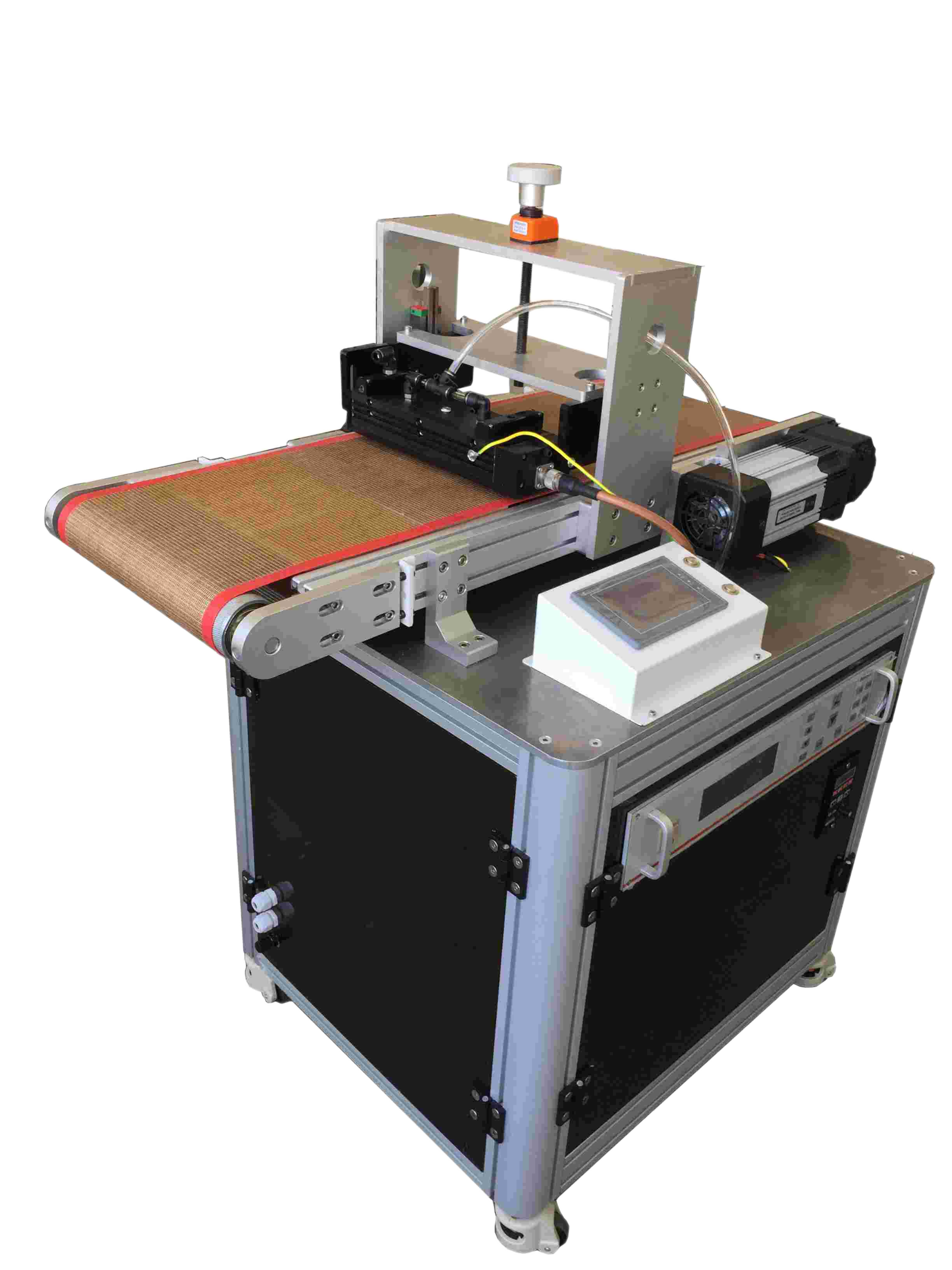

FR-L235 Linear Plasma Cleaner

Compact linear plasma module designed for surface preparation of metals, plastics, glass, and polymer components. The system supports customizable treatment width and inline dry processing for high-throughput production environments.

Compact Linear Module,High Efficiency
Touch Screen + PLC,Easy Operation
Customizable Width and Nozzle Gap

Get A Quote Tech Specs

Tech Specs

Model	FR-L235
Control System	Touch screen + PLC
Input Voltage	AC 220V
Power	500 W
Treatment Width	235 mm (customizable)
Nozzle Height	1-5 mm (recommended 2 mm)
Gas	Argon / Oxygen

Key Features

Compact Modular Design

Compact linear plasma module designed for easy integration into existing production lines, minimizing equipment footprint while providing consistent surface preparation during continuous processing.
Inline Continuous Processing

Designed for continuous operation directly on production lines to enable high-throughput surface treatment without slowing downstream assembly or requiring manual handling steps.
Dry, Pollution-Free Treatment

Entire process is dry and produces no liquid waste or chemical residues, minimizing contamination risk and eliminating the need for solvent disposal or additional drying steps.
Broad Substrate Compatibility

Processes a wide range of materials including metals, plastics, glass, and polymers, preparing substrates for coating, printing, bonding, and plating operations in industrial production.
Adjustable Nozzle & Gap Control

Nozzle height can be set from 1–5 mm (2 mm recommended) enabling precise treatment of delicate or uneven surfaces and optimizing plasma exposure for different materials.
User-Friendly Control Interface

Equipped with a touch-screen interface and PLC control for simplified setup, repeatable recipes and operator-friendly monitoring to reduce training time and error rates.

Plasma Cleaning Process

Plasma Generation

Process gas is energized and converted into a reactive plasma containing ions, electrons, and radicals.
Plasma–Surface Interaction

Energetic plasma species interact with surface molecules and contaminants under controlled vacuum conditions.
Chemical Reaction

Reactive ions and radicals break down organic residues and surface contaminants through controlled chemical reactions.
Volatilization

The reaction products are converted into volatile compounds and enter the gas phase.
Removal from Surface

Gaseous by-products desorb from the surface and are evacuated, leaving a clean, activated material surface.
