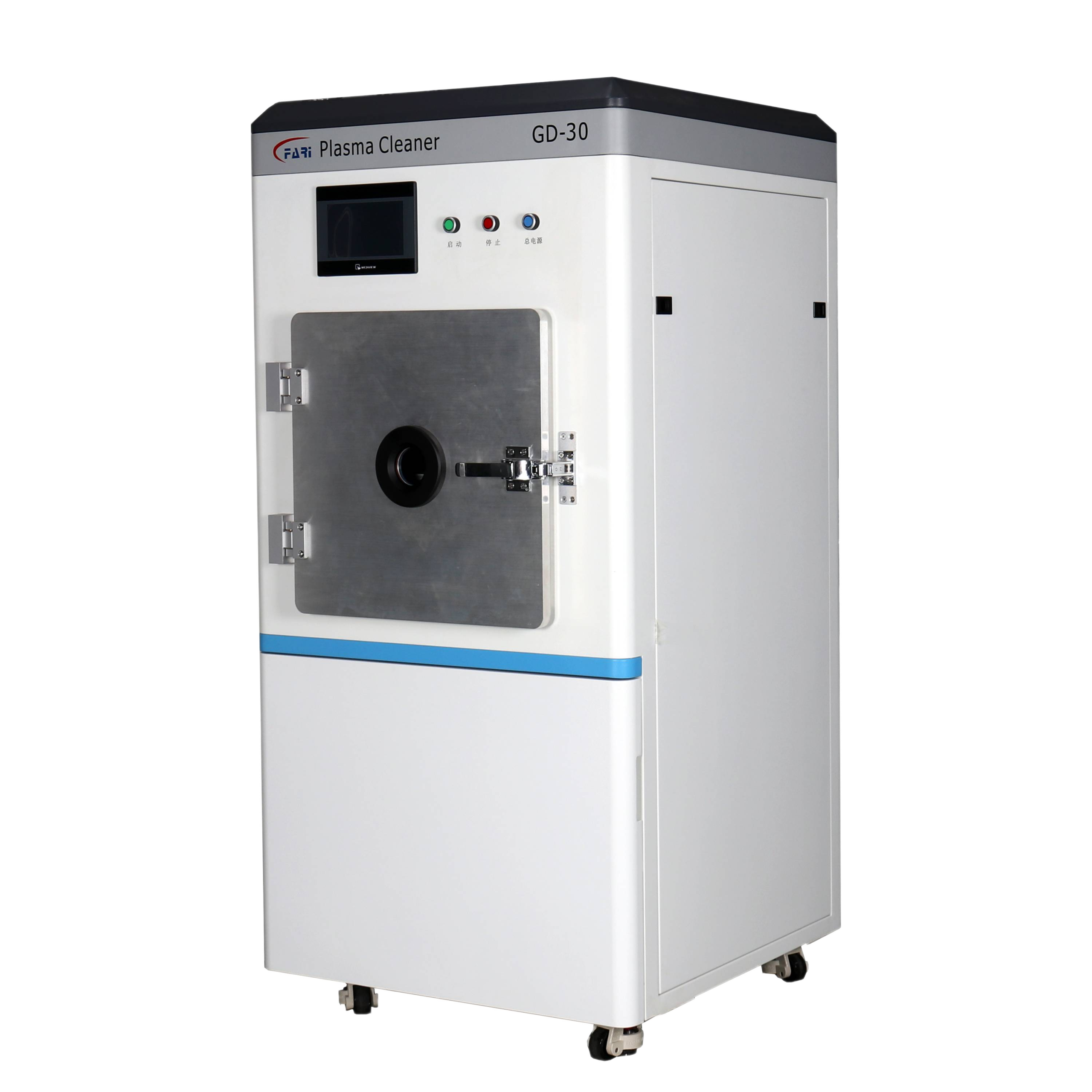

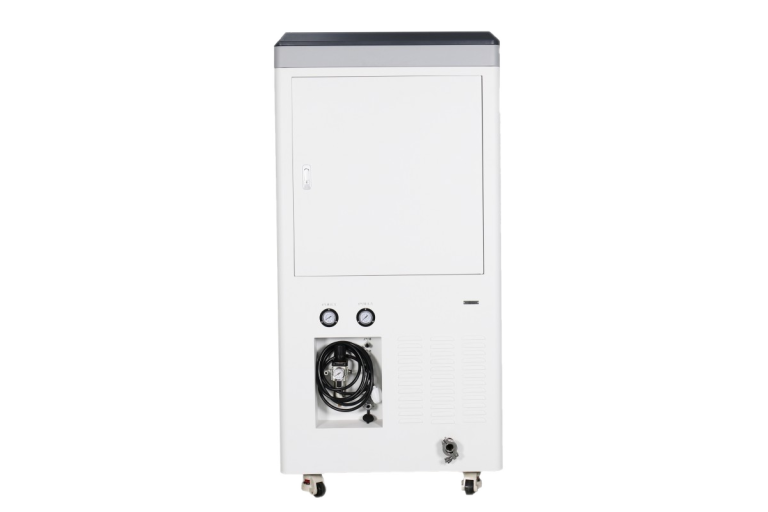

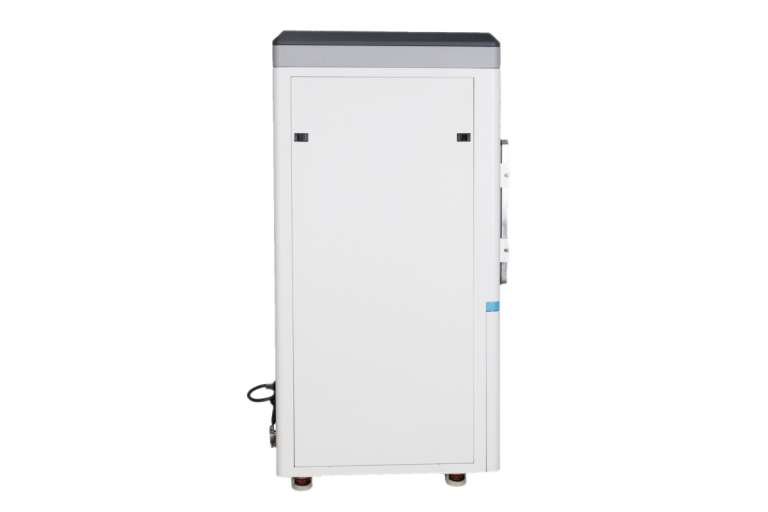

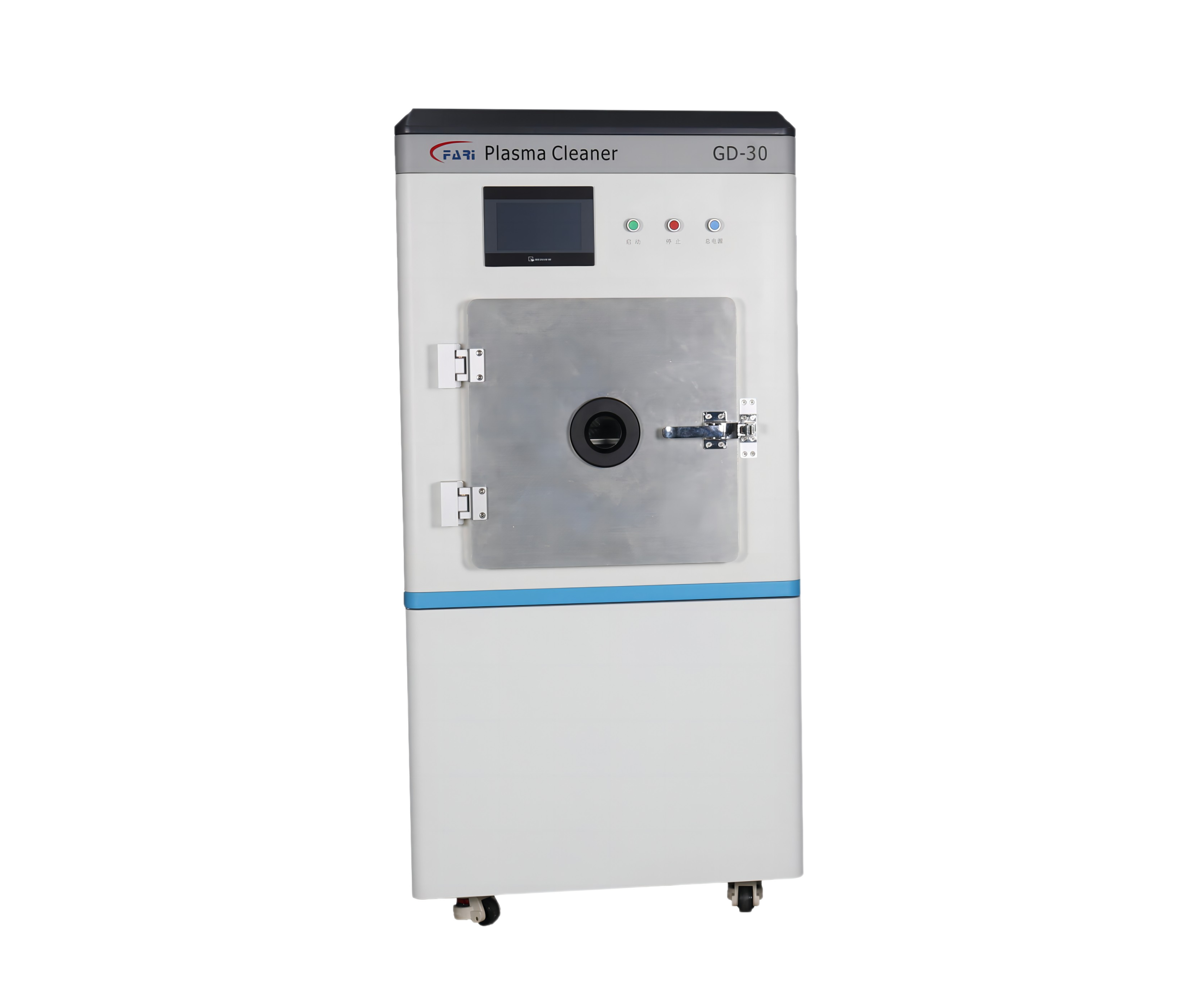

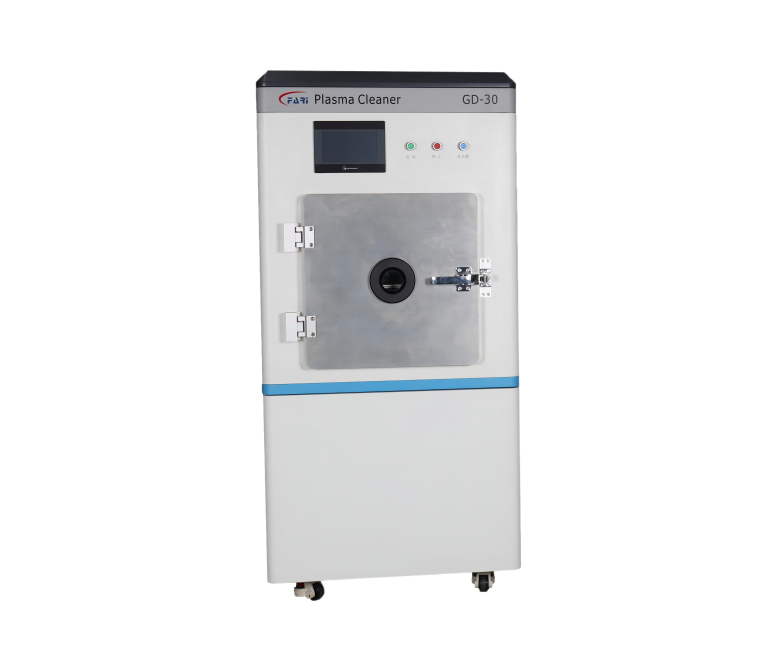

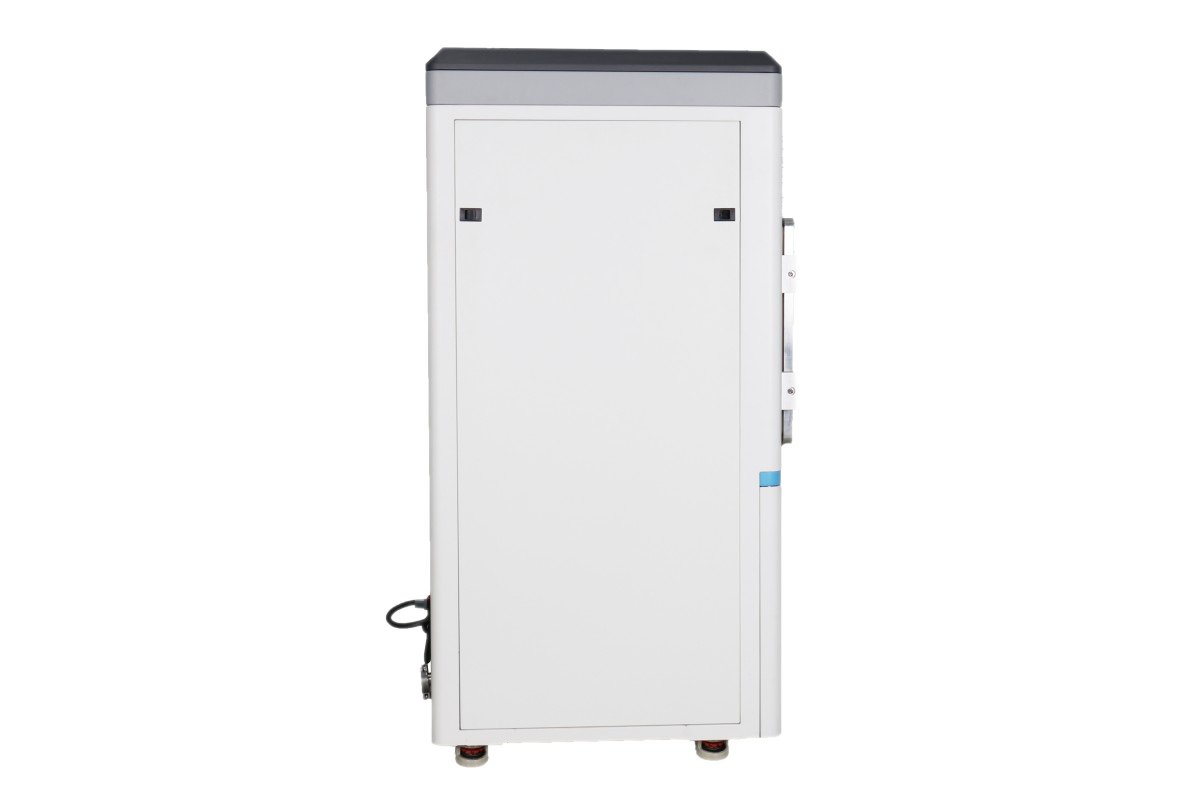

GD-30 Vacuum Plasma Cleaner

High-stability vacuum plasma cleaner with adjustable 2000W power and dual-frequency operation (40kHz / 13.56MHz). Customizable chamber, PLC + touchscreen control and multi-gas support for reliable continuous production.

High Power Density. Stable Continuous Production.
PLC + Touchscreen. Easy Operation.
Customizable Chamber Size and Layers.

Get A Quote Tech Specs

Tech Specs

Product Name	Vacuum Plasma Cleaner
Model	GD-30
Control System	PLC + Touch Screen
Power Frequency	40 kHz / 13.56 MHz
Supply Voltage	AC 380V (±10V)
Power Rating	2000 W (adjustable)
Gas Lines	2-channel proportional valve flow control
Process Control	Automatic and Manual modes
Chamber Internal Size	350 × 320 × 320 mm
Chamber Material	Stainless steel or Aluminum (optional)
Carrier Capacity	W300 × D265 mm, 5 layers
Overall Dimensions (L×D×H)	870 × 740 × 1540 mm
Chamber Volume	30 L
Vacuum Level	30 Pa
Supported Gases	Ar, O2, N2, Air, H2+N2 (mixed gas)

Key Features

Adjustable High Power Output

Provides up to 2000 W of adjustable power with dual-frequency operation (40 kHz / 13.56 MHz) to ensure stable plasma density and repeatable surface treatment for large-scale continuous production.
User-Friendly PLC Touch Control

Integrated PLC plus touchscreen interface enables intuitive recipe management, real-time process monitoring and quick switching between automatic and manual modes to reduce operator training time.
Customizable Chamber Configurations

Chamber size, material and layer count can be customized to match specific part geometries and production volumes, enabling flexible integration into diverse manufacturing lines.
Multi-Gas Process Flexibility

Supports multiple process gases (Ar, O2, N2, Air, H2+N2 mixed) with 2-channel proportional flow control to tune plasma chemistry for cleaning, activation or surface modification of varied substrates.
Compact, Multi-Layer Loading Design

Compact 30 L chamber with five-layer carrier (W300 × D265 mm) maximizes throughput in a small footprint, ideal for batch processing or inline integration without sacrificing capacity.
Robust Safety and Reliability Features

Designed with multi-function safety protections and selectable stainless steel or aluminum cavity materials to ensure long-term reliability, operator safety and consistent process results.

Plasma Cleaning Process

Plasma Generation

Process gas is energized and converted into a reactive plasma containing ions, electrons, and radicals.
Plasma–Surface Interaction

High-energy plasma species reach the material surface and interact with contaminants at the molecular level.
Chemical Reaction

Reactive ions and radicals break down organic residues and surface contaminants through controlled chemical reactions.
Volatilization

The reaction products are converted into volatile compounds and enter the gas phase.
Removal from Surface

Gaseous by-products desorb from the surface and are evacuated, leaving a clean, activated material surface.
