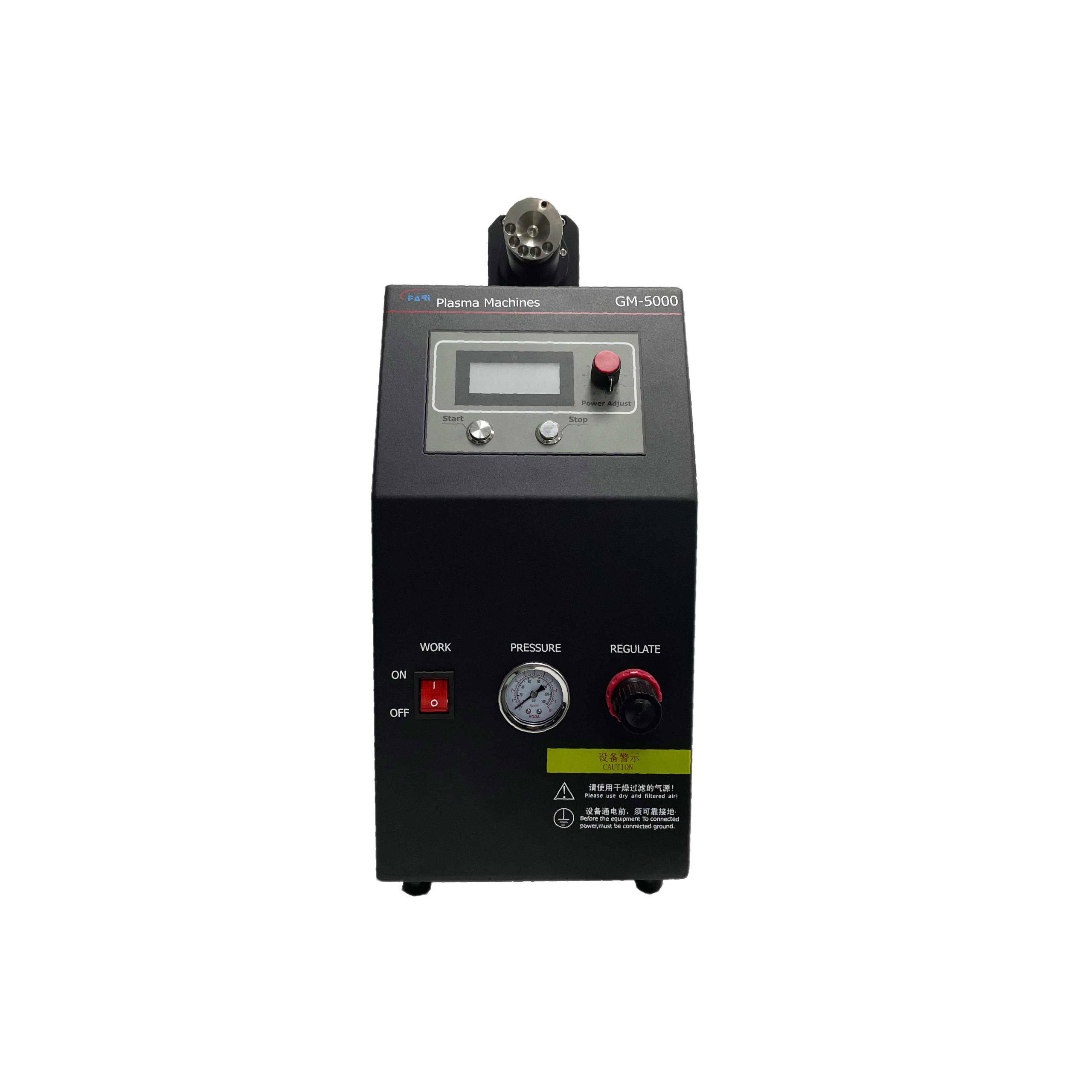

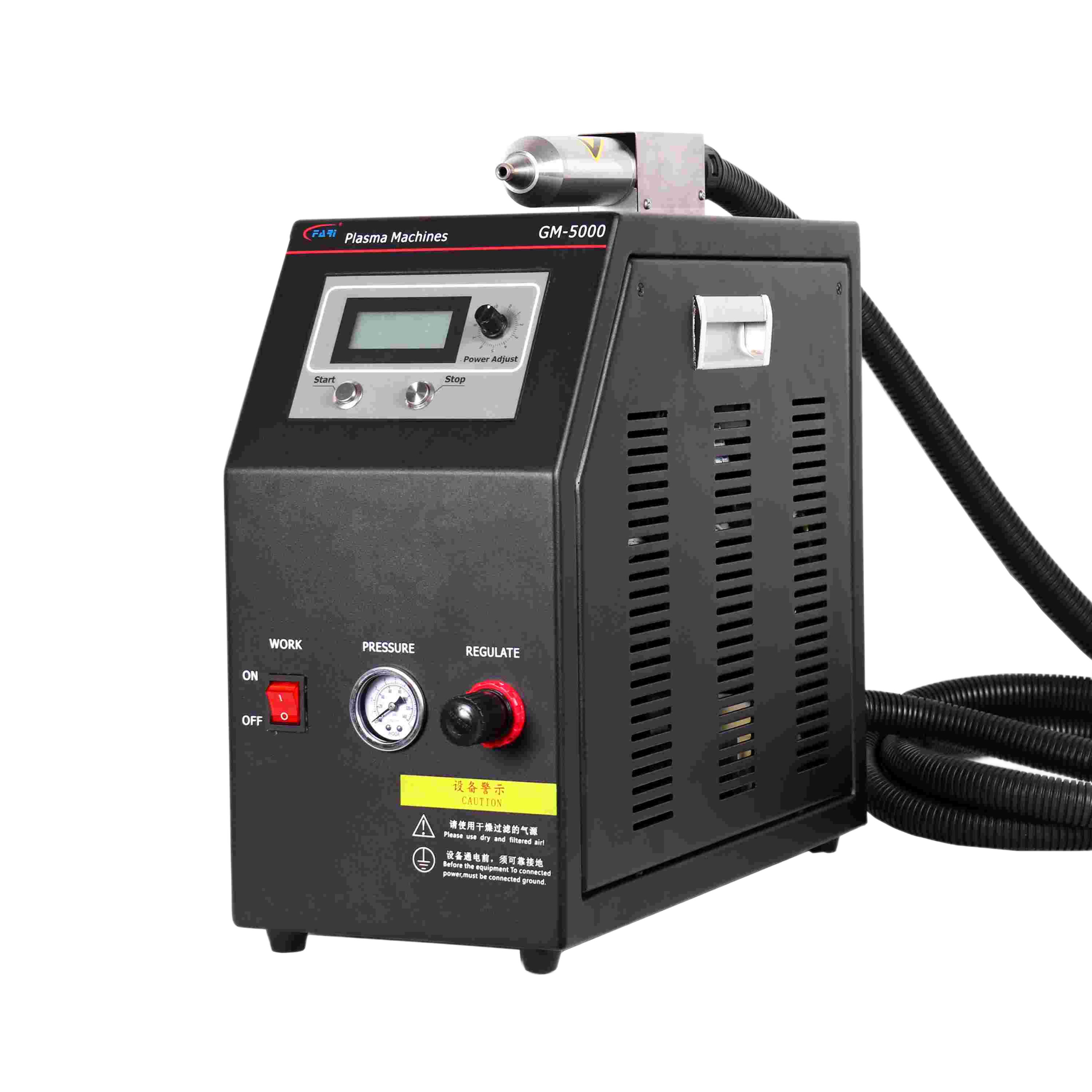

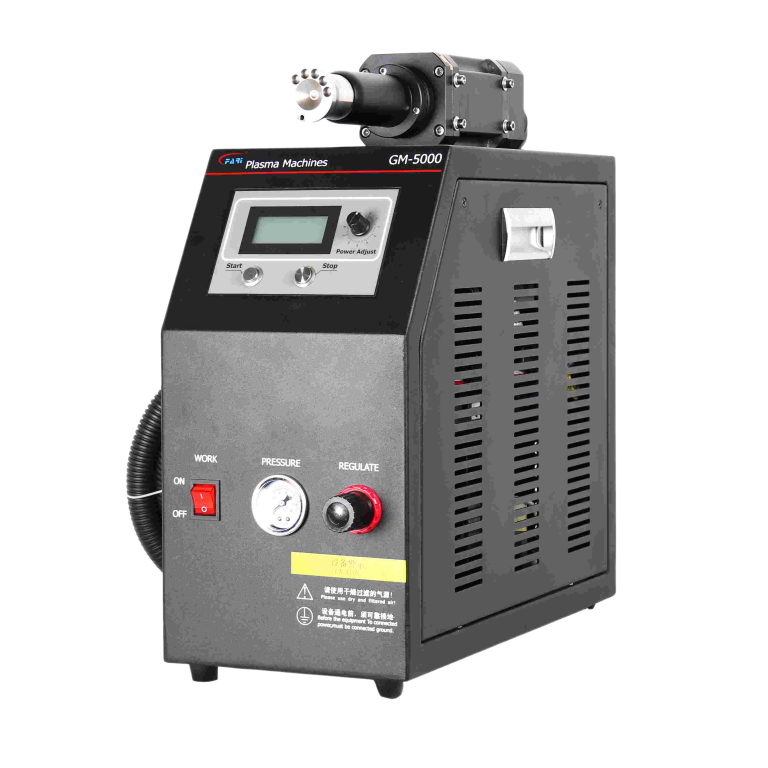

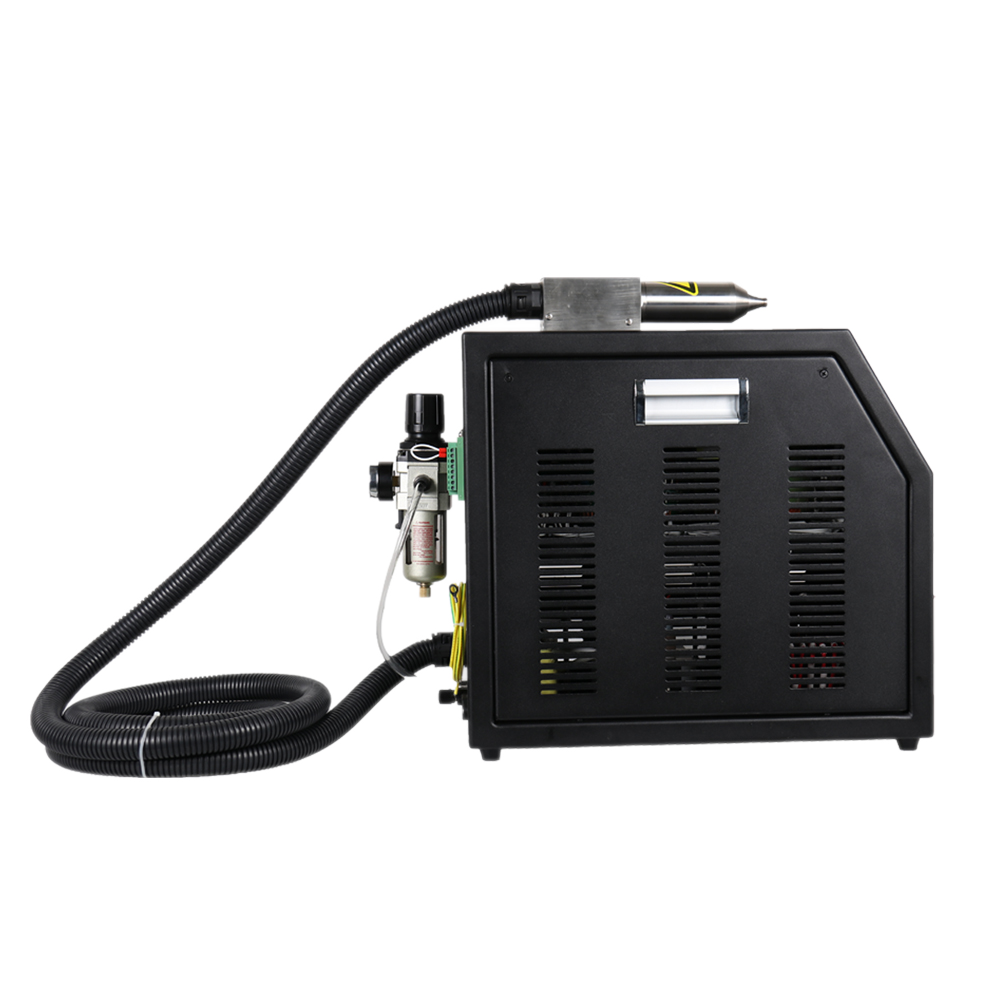

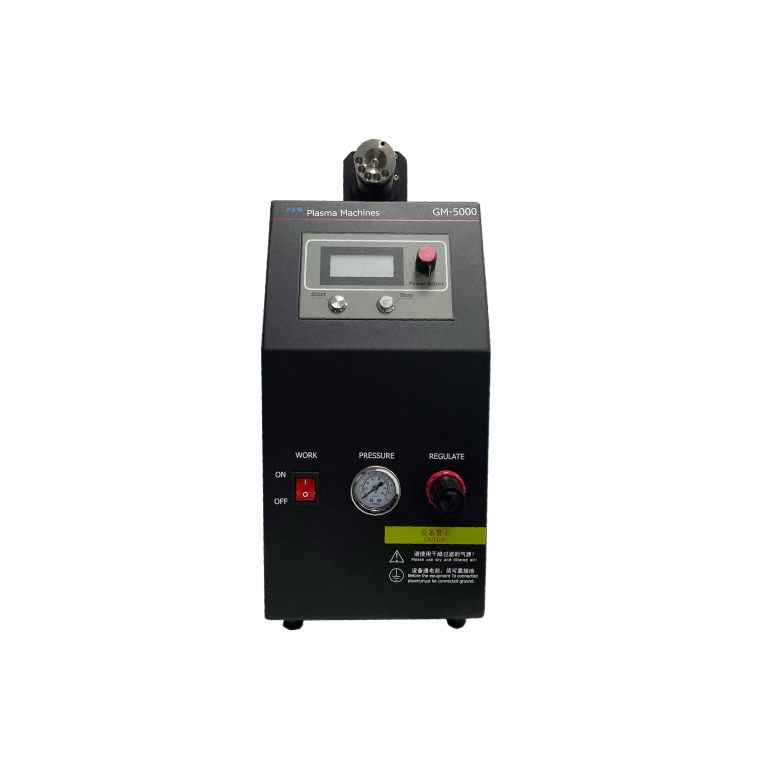

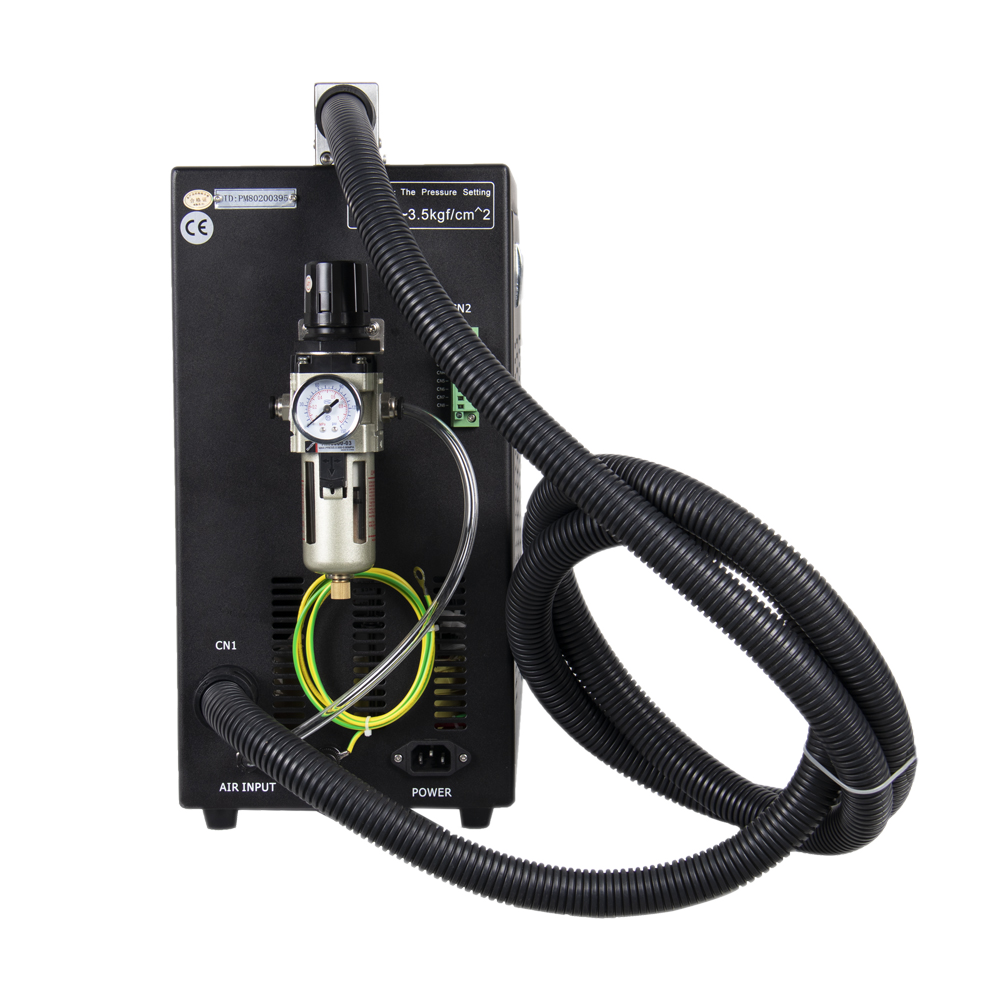

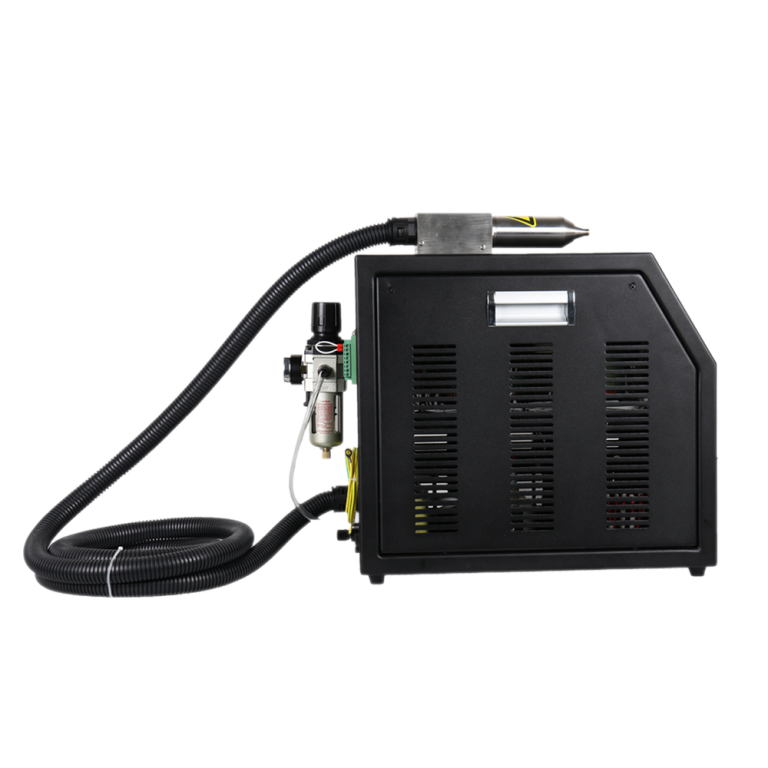

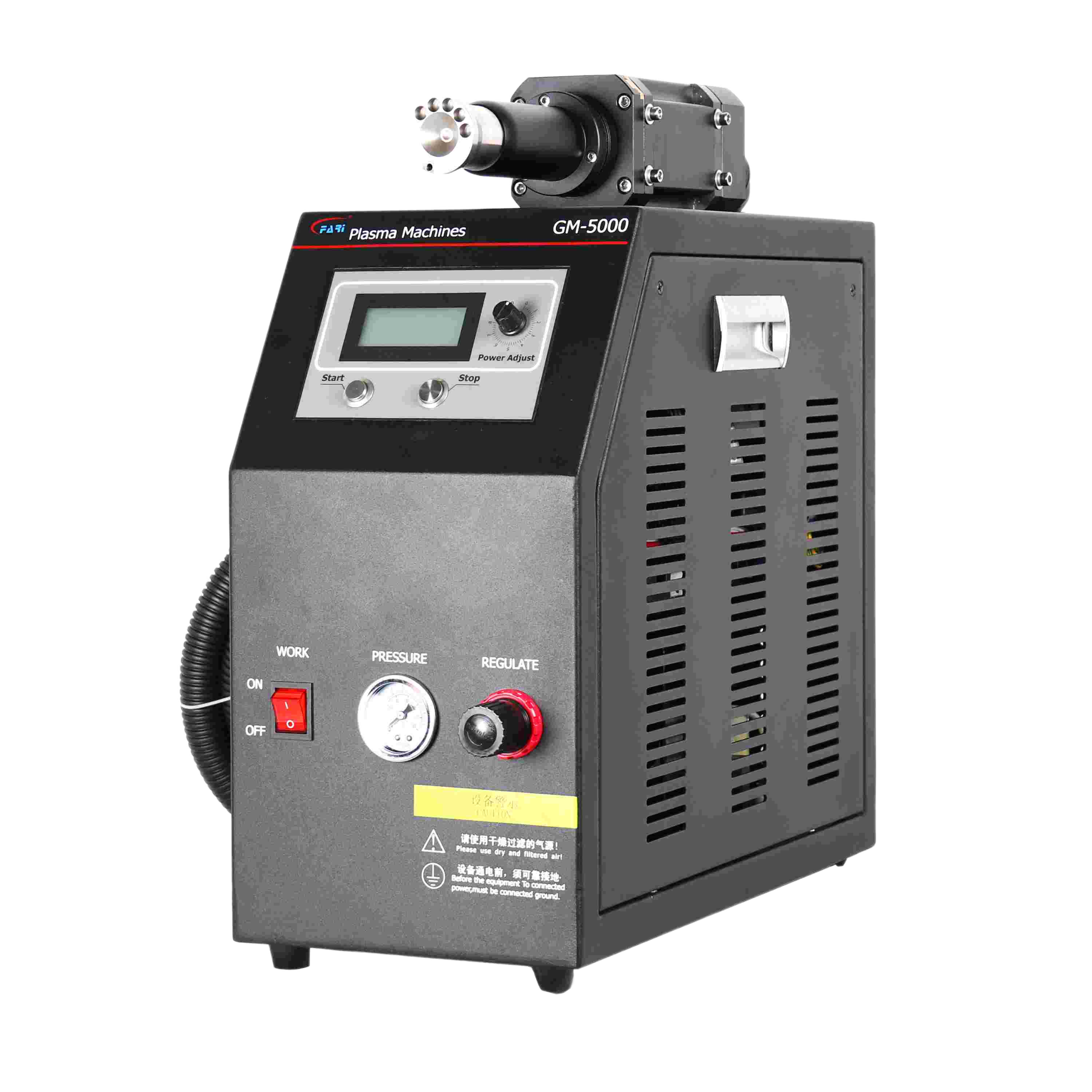

GM-5000 Plasma Surface Treater

Compact inline GM-5000 plasma surface treater featuring a beltless silent nozzle, panel and remote analog power control, adjustable output up to 1200W, suitable for automation and inline integration.

Beltless Silent Nozzle.Optimized for Inline Use.
Panel & Remote Analog Power Control.Easy Integration.
Adjustable Power up to 1200W.Flexible Process Control.

Get A Quote Tech Specs

Tech Specs

Host Model	GM-5000
Power Supply	AC 220V, 50/60Hz
Power Rating	1200 W (adjustable)
Frequency	18-25 kHz
Host Dimensions (W×L×H)	460 × 210 × 420 mm
Gun Model	DV1, DVG3
Nozzle Count	1
Nozzle Treatment Widths (options)	3–5 mm, 7–13 mm, 15–18 mm; also 35–40 mm, 55–60 mm, 75–80 mm, 85–90 mm (optional)
Inline Connectivity	Capable of connecting to on-site equipment for inline operation
Alarm Functions	Plasma output loss and air pressure fault alarms
Treatment Distance	5–15 mm (recommended 10 ± 2 mm)
Cable Length	2.5 m (extendable)
Compatible Gases	N2, CDA
Nozzle Weight	1.5 kg
Air Source Pressure	2–2.5 kgf/cm²
Machine Weight	18 kg

Key Features

Silent Beltless Nozzle Design

A beltless, low-noise nozzle design reduces mechanical wear and operational noise while delivering stable plasma discharge for consistent surface activation in both manual and inline automated processes.
Flexible Power Control Options

Power can be adjusted locally via the front panel or remotely using analog signals, enabling precise tuning of plasma intensity to match a wide range of materials and process requirements.
Wide Nozzle Width Options

Multiple nozzle width options—from narrow 3–5 mm to wide 85–90 mm—allow targeted or broad-area treatment, making the system suitable for small components and larger parts on production lines.
Inline Integration Ready

Designed for easy integration with existing production equipment, the GM-5000 supports synchronized inline operation and can be incorporated into automated assembly and coating lines.
Robust Alarm & Safety Features

Built-in alarms detect plasma output loss and insufficient air pressure to protect the process and notify operators immediately, improving uptime and reducing defective parts.
Compact, Portable Footprint

Compact host dimensions and a 2.5 m extendable cable enable flexible placement and mobility on the factory floor, supporting both bench-top and automated production environments.

Plasma Cleaning Process

Plasma Generation

Process gas is energized and converted into a reactive plasma containing ions, electrons, and radicals.
Plasma–Surface Interaction

High-energy plasma species reach the material surface and interact with contaminants at the molecular level.
Chemical Reaction

Reactive ions and radicals break down organic residues and surface contaminants through controlled chemical reactions.
Volatilization

The reaction products are converted into volatile compounds and enter the gas phase.
Removal from Surface

Gaseous by-products desorb from the surface and are evacuated, leaving a clean, activated material surface.
