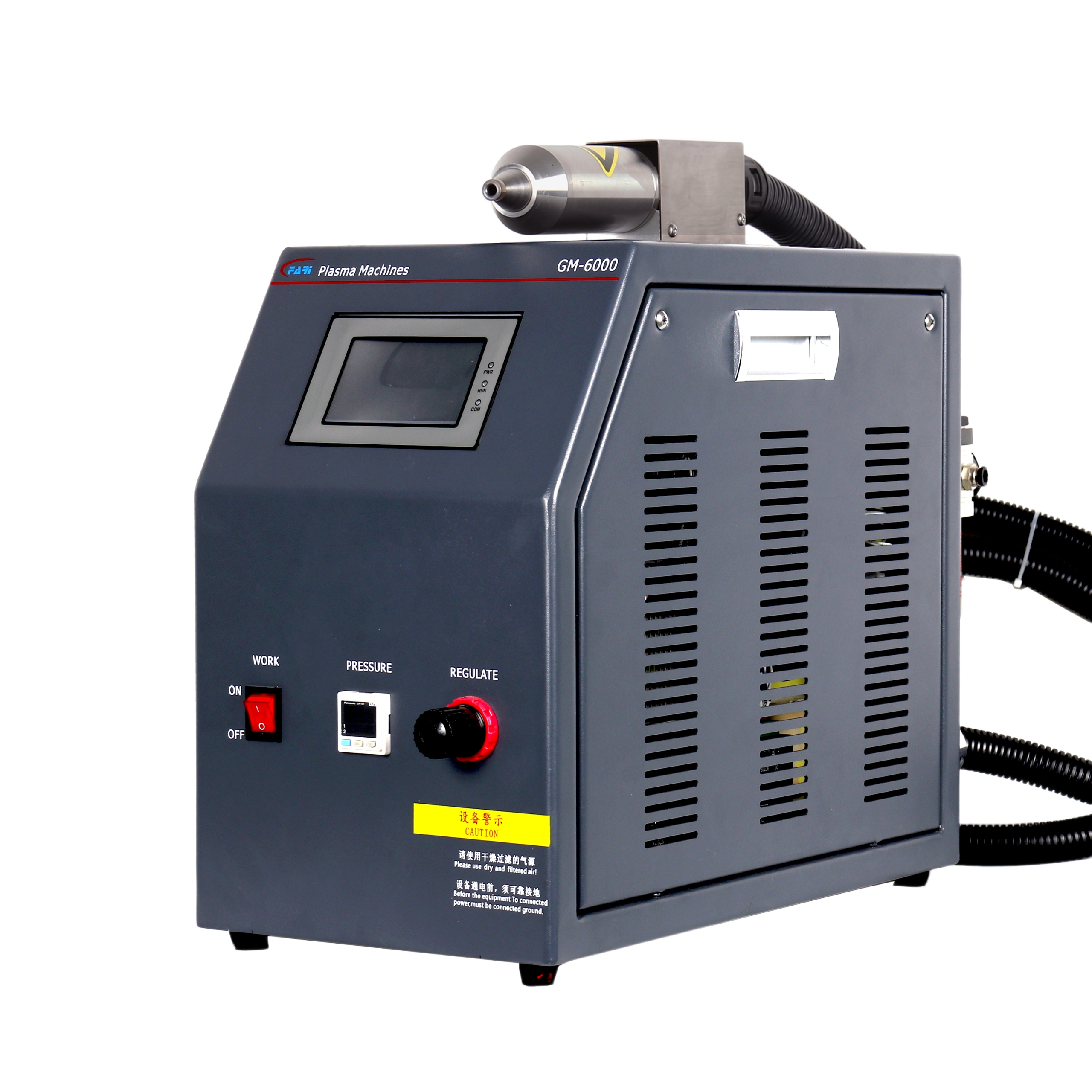

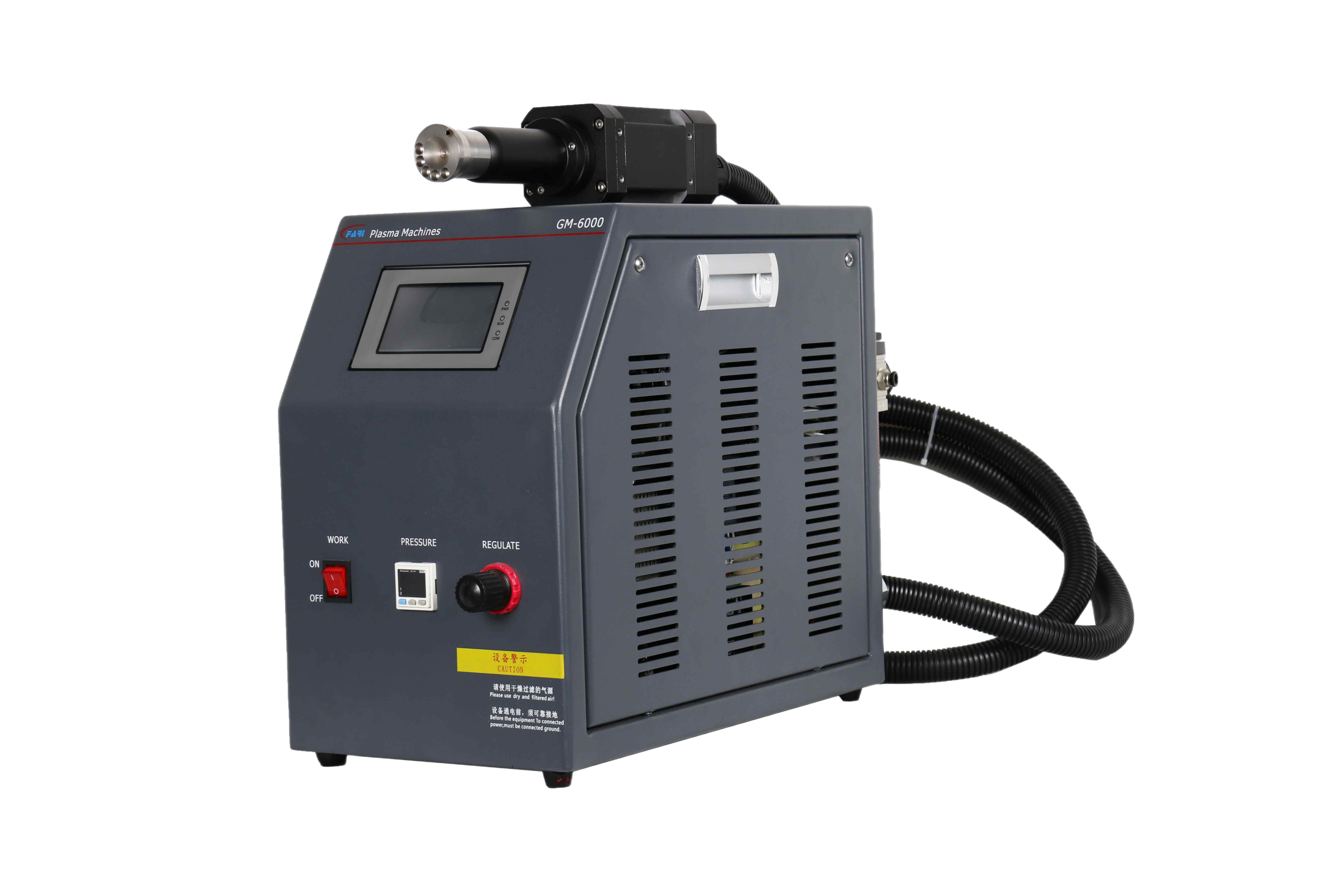

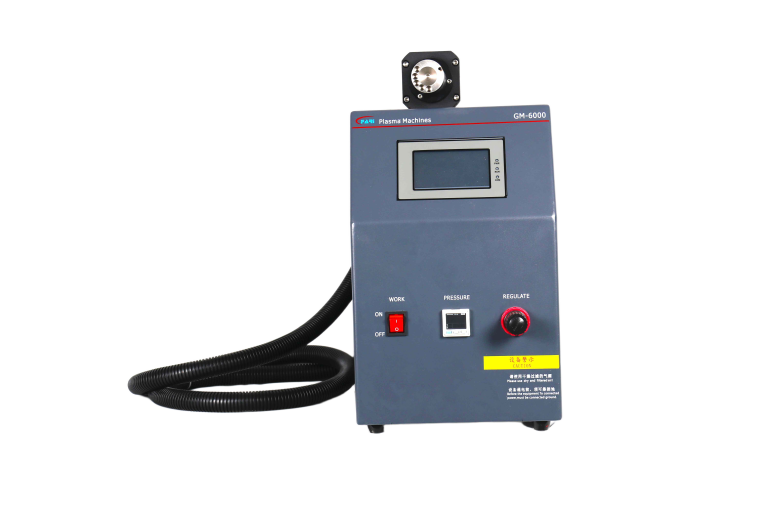

GM-6000 Low-Temp Plasma Treater

The GM-6000 low-temperature plasma treater delivers inline or automated surface activation with a quiet belt-free nozzle, panel and remote analog power control, and safety alarms for reliable production use.

Inline & Automated Integration.
Quiet belt-free nozzle design.
Adjustable power with remote control & alarms.

Get A Quote Tech Specs

Tech Specs

Main Model	GM-6000
Power Supply	AC 220 V, 50/60 Hz
Input Power	1000 W (adjustable)
Operating Frequency	18–25 kHz
Main Unit Dimensions	586 × 260 × 420 mm
Gun / Nozzle Model	DV1, DVG3
Nozzle Quantity	1
Nozzle Treatment Widths	3–5 mm, 7–13 mm, 15–18 mm (optional); 35–40 mm, 55–60 mm, 75–80 mm, 85–90 mm (optional)
Inline Function	Can be linked to on-site equipment for inline processing
Alarm Functions	Alarms for no plasma output and no air pressure
Recommended Nozzle Height	5–15 mm (recommended 10 ± 2 mm)
Cable Length	2.5 m (extendable)
Compatible Gases	N₂, CDA
Nozzle Weight	1.5 kg
Air Source Pressure	2–2.5 kgf/cm²
Machine Weight	23 kg

Key Features

Compact High-Power Unit

Delivers up to 1000 W of adjustable power in a compact footprint (586 × 260 × 420 mm), enabling powerful surface activation while fitting into constrained production-line spaces for easy integration.
Wide Frequency Range Operation

Operates across an 18–25 kHz frequency band to provide stable plasma generation and consistent surface activation, improving adhesion and cleaning effectiveness for diverse materials.
Multiple Nozzle Options

Offers a range of selectable nozzle widths (3–5 mm, 7–13 mm, 15–18 mm and larger options) to precisely match treatment width requirements for small components to wider web processes.
Inline Integration & Automation

Designed for inline or automated use with on-site equipment linkage, remote analog power control and panel control, enabling synchronized process control and higher production throughput.
Gas Compatibility & Low Maintenance

Compatible with common process gases (N2, CDA) and features a belt-free, quiet nozzle design that reduces maintenance needs and supports stable, long-term production operation.
Precise Height & Safety Controls

Maintains recommended nozzle-to-product height (5–15 mm, ideal 10 ± 2 mm) and includes alarms for no plasma output and low air pressure to protect process quality and operator safety.

Plasma Cleaning Process

Plasma Generation

Process gas is energized and converted into a reactive plasma containing ions, electrons, and radicals.
Plasma–Surface Interaction

High-energy plasma species reach the material surface and interact with contaminants at the molecular level.
Chemical Reaction

Reactive ions and radicals break down organic residues and surface contaminants through controlled chemical reactions.
Volatilization

The reaction products are converted into volatile compounds and enter the gas phase.
Removal from Surface

Gaseous by-products desorb from the surface and are evacuated, leaving a clean, activated material surface.
