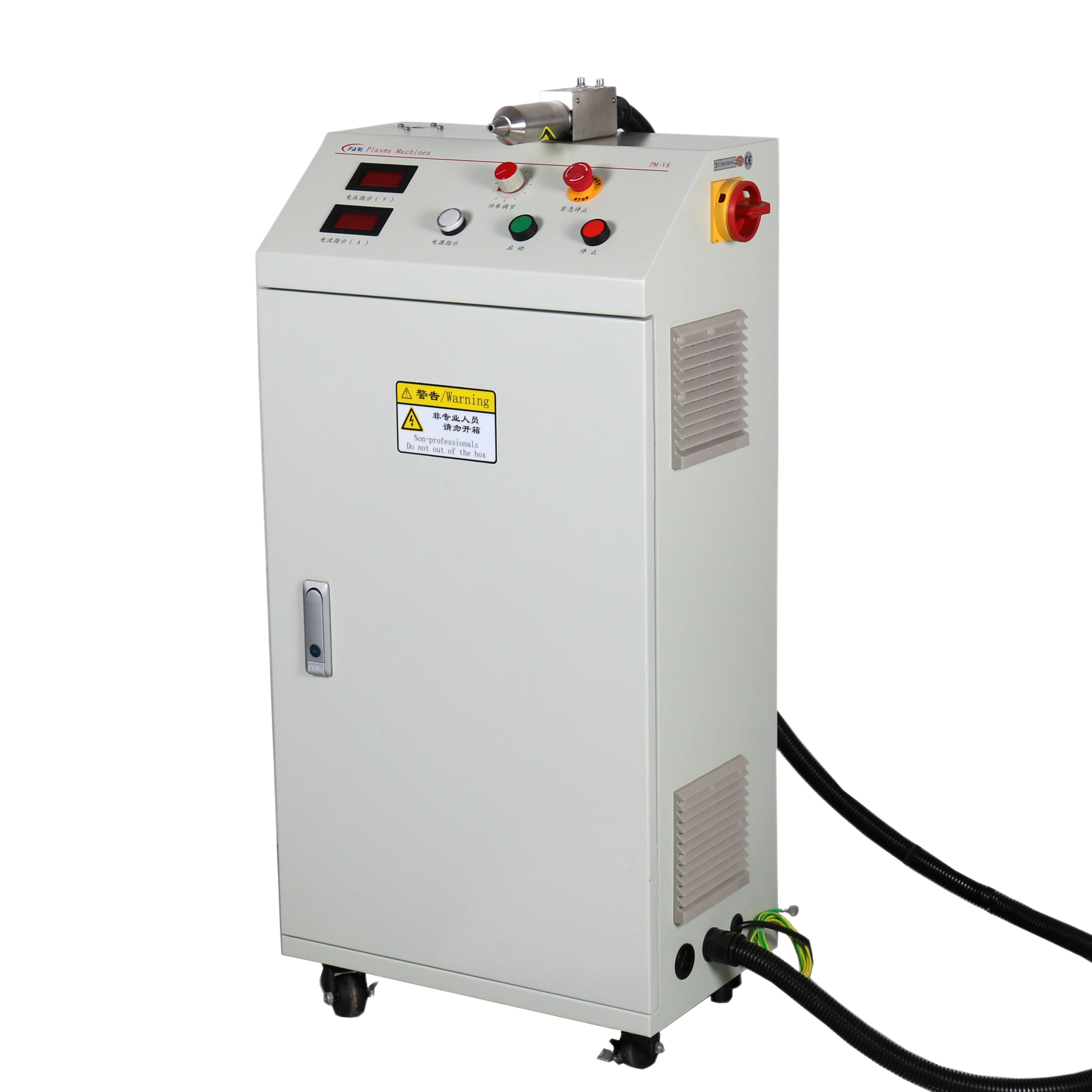

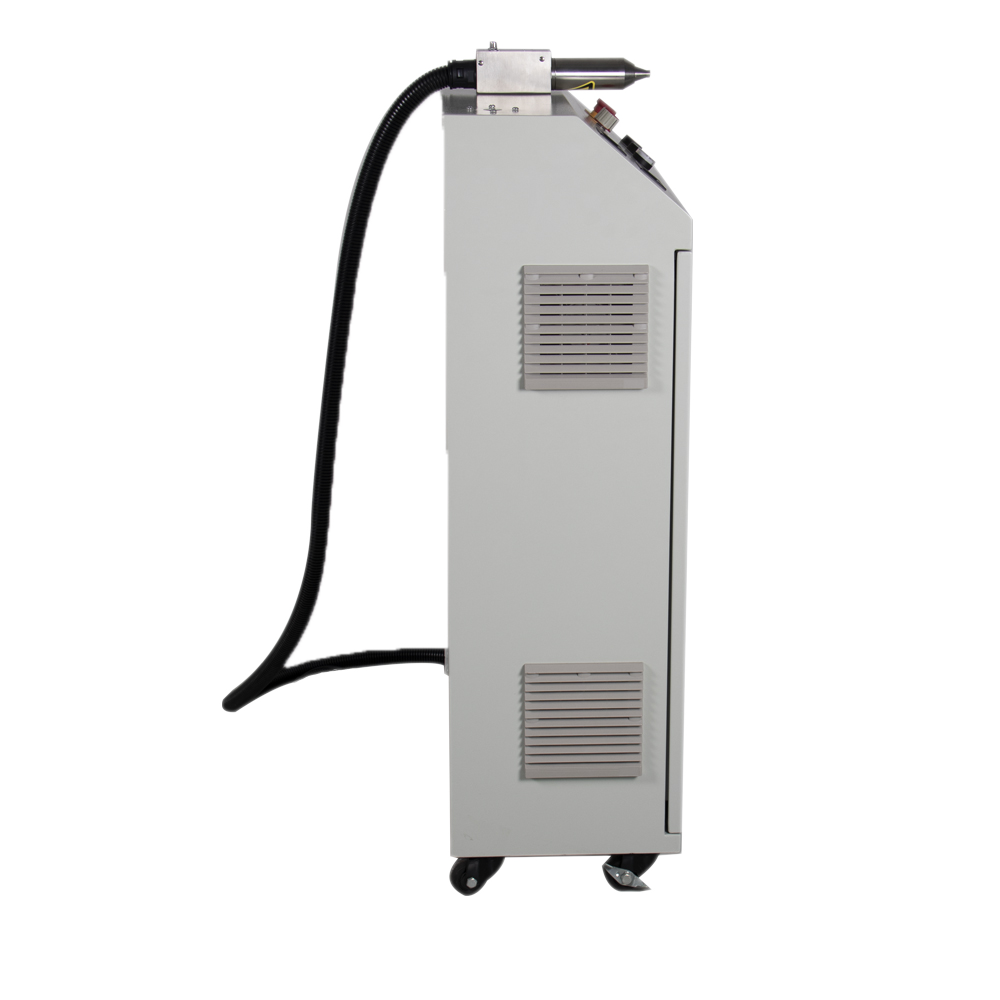

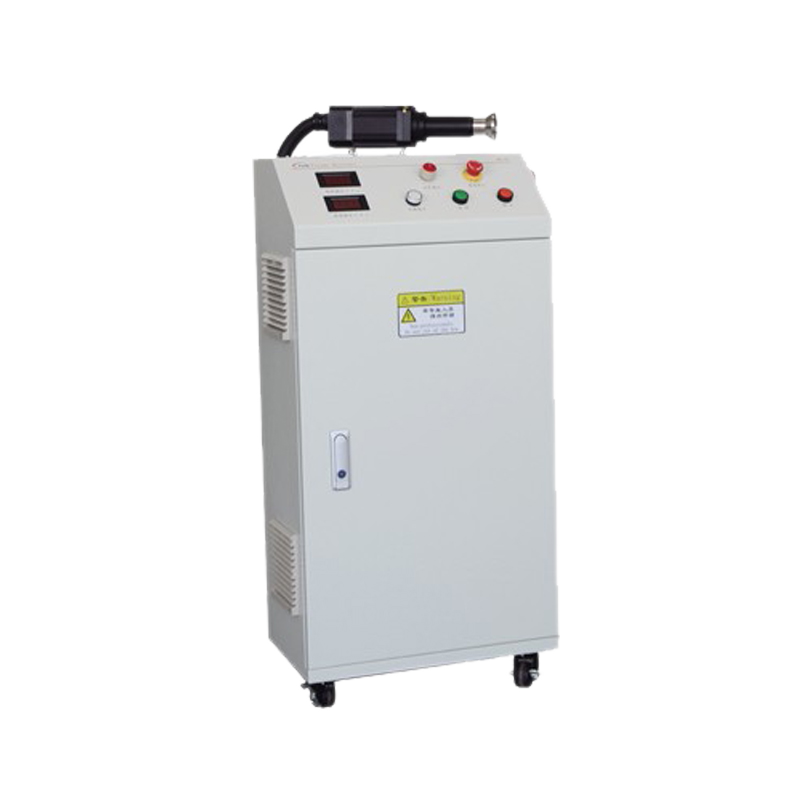

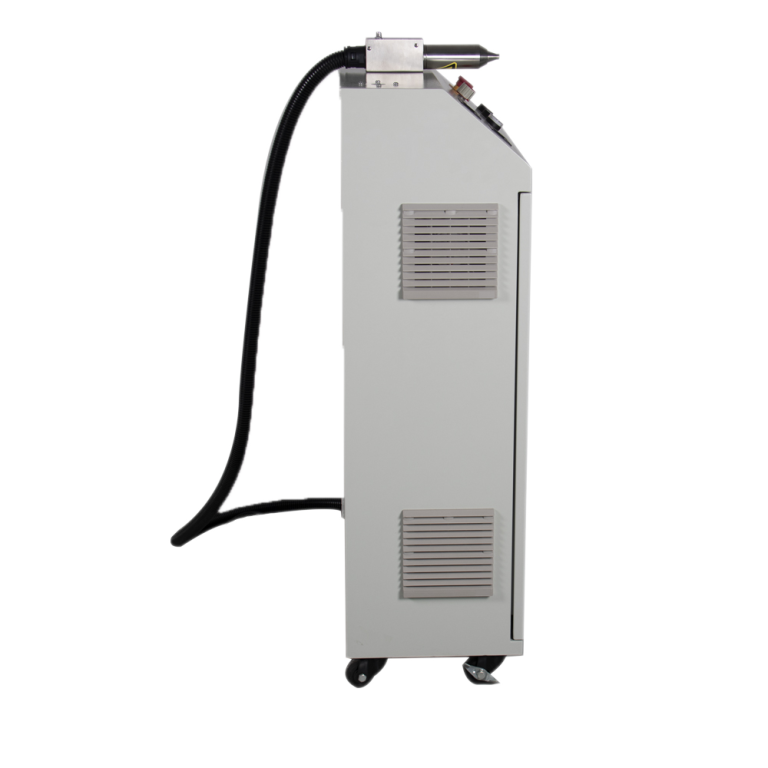

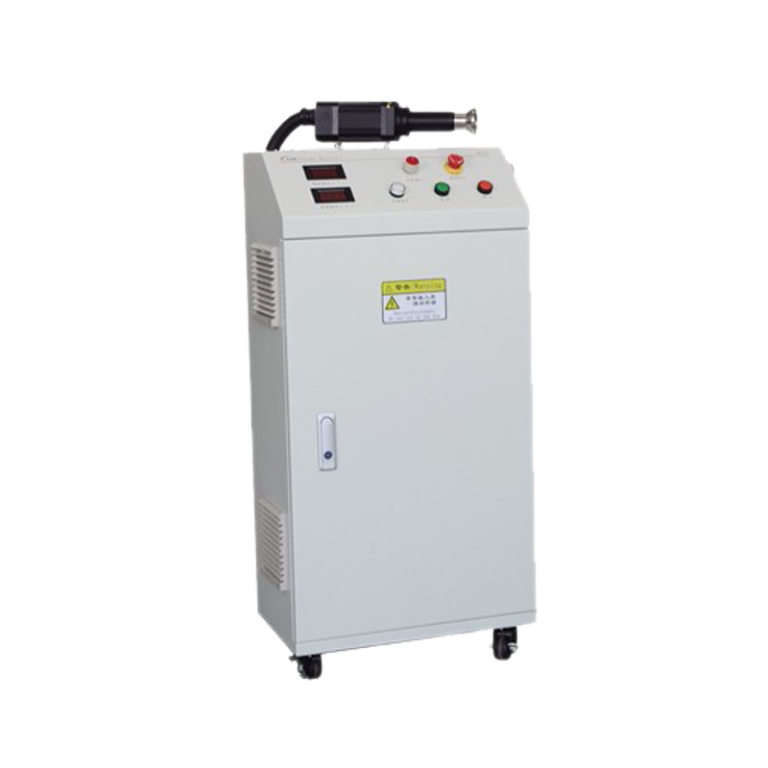

PM-V8 Plasma Surface Processor

The PM-V8 is a low-temperature plasma surface treatment unit designed for inline automation. It supports multiple interchangeable nozzles, uses compressed air or nitrogen, and employs a quiet cold-arc discharge for safe, pollution-free surface activation and cleaning.

Automatable line integration
Multiple interchangeable nozzle sizes
Low-temperature cold-arc, quiet operation

Get A Quote Tech Specs

Tech Specs

Product Name	Low-temperature plasma surface cleaner
Model	PM-V8
Power Supply	AC220V, 50/60Hz
Power	1000W (adjustable)
Frequency	18-25 kHz
Dimensions	500 mm × 300 mm × 1000 mm
Nozzle Quantity	1
Nozzle Treatment Widths	3-5mm, 7-13mm, 15-18mm
Online Integration	Can be connected to onsite equipment / production lines
Treatment Height	5-15 mm (recommended 10 ±2 mm)
Cable Length	2.5 m (extendable)
Nozzle Weight	1.5 kg
Air Supply	Built-in air source (supports compressed air or nitrogen)
Gross Weight	55 kg

Key Features

Automated Inline Production Integration

Designed for seamless connection to production lines, the PM-V8 can be integrated with conveyors and PLC systems to enable continuous automated plasma surface treatment without manual repositioning or batch stoppages.
Versatile Interchangeable Nozzles for Variable Treatment Widths

Multiple nozzle sizes and rotating gun options cover narrow to wide treatment areas (3–90 mm ranges), allowing precise activation for diverse part geometries and improving adhesion across many materials.
Low-temperature Cold-arc Plasma Technology

Employs cold-arc discharge to activate and clean surfaces at low temperatures, preventing thermal damage to heat-sensitive polymers and delicate assemblies while delivering consistent surface energy improvement.
Quiet, Safe and Eco-friendly Operation

No-belt silent nozzle design and pollution-free plasma discharge ensure operator comfort and environmental compliance, reducing the need for additional exhaust or post-treatment cleaning processes.
Adjustable Power and Frequency Control

1000W adjustable output and an 18–25 kHz frequency range provide tunable energy delivery to match material types and processing speeds, optimizing treatment efficacy and minimizing overexposure.
Compact Design with Lightweight Nozzle

Compact main unit (500×300×1000 mm) and 1.5 kg nozzle allow easy retrofit into existing lines; 2.5 m cable and built-in air source provide flexible placement and simplified installation.

Plasma Cleaning Process

Plasma Generation

Process gas is energized and converted into a reactive plasma containing ions, electrons, and radicals.
Plasma–Surface Interaction

High-energy plasma species reach the material surface and interact with contaminants at the molecular level.
Chemical Reaction

Reactive ions and radicals break down organic residues and surface contaminants through controlled chemical reactions.
Volatilization

The reaction products are converted into volatile compounds and enter the gas phase.
Removal from Surface

Gaseous by-products desorb from the surface and are evacuated, leaving a clean, activated material surface.
