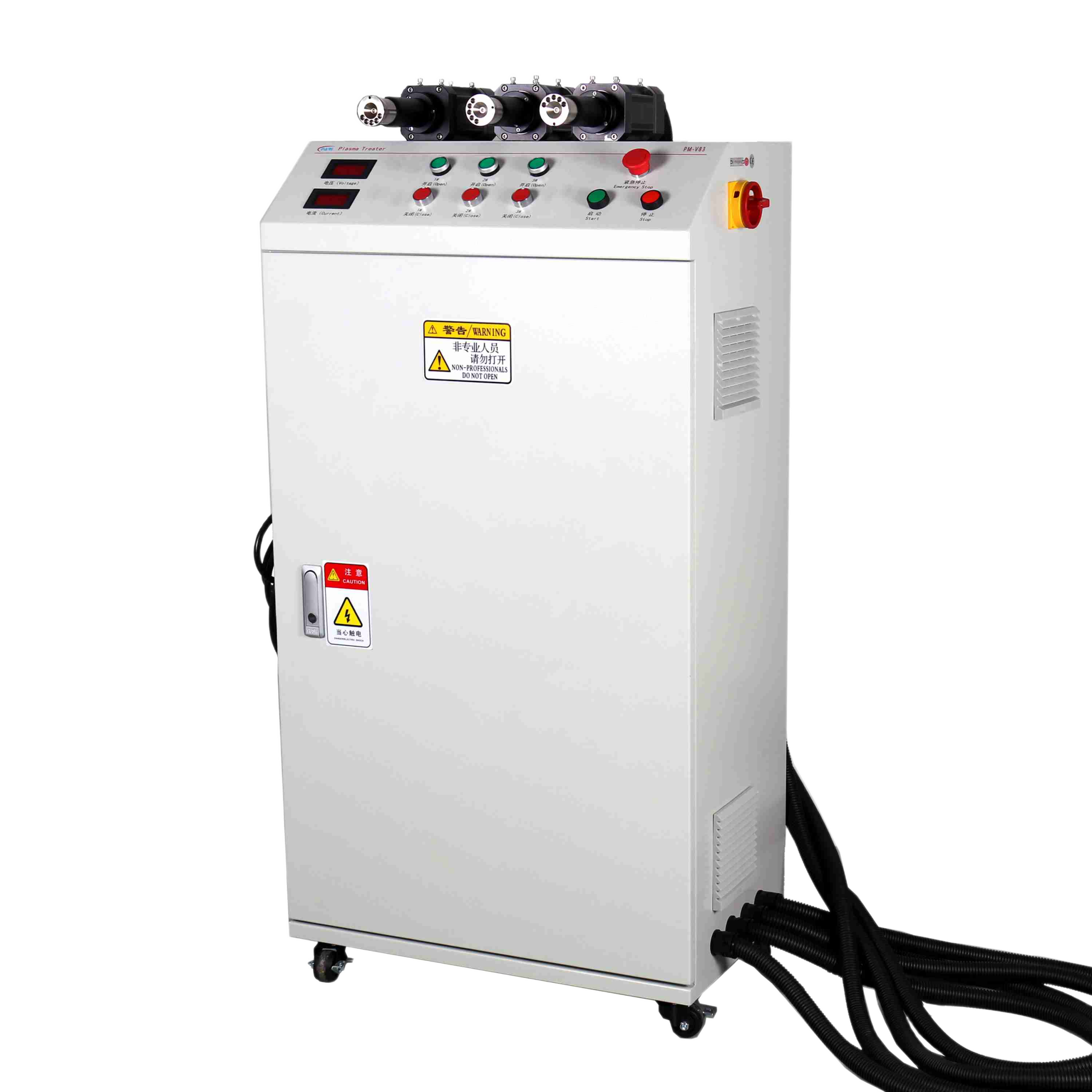

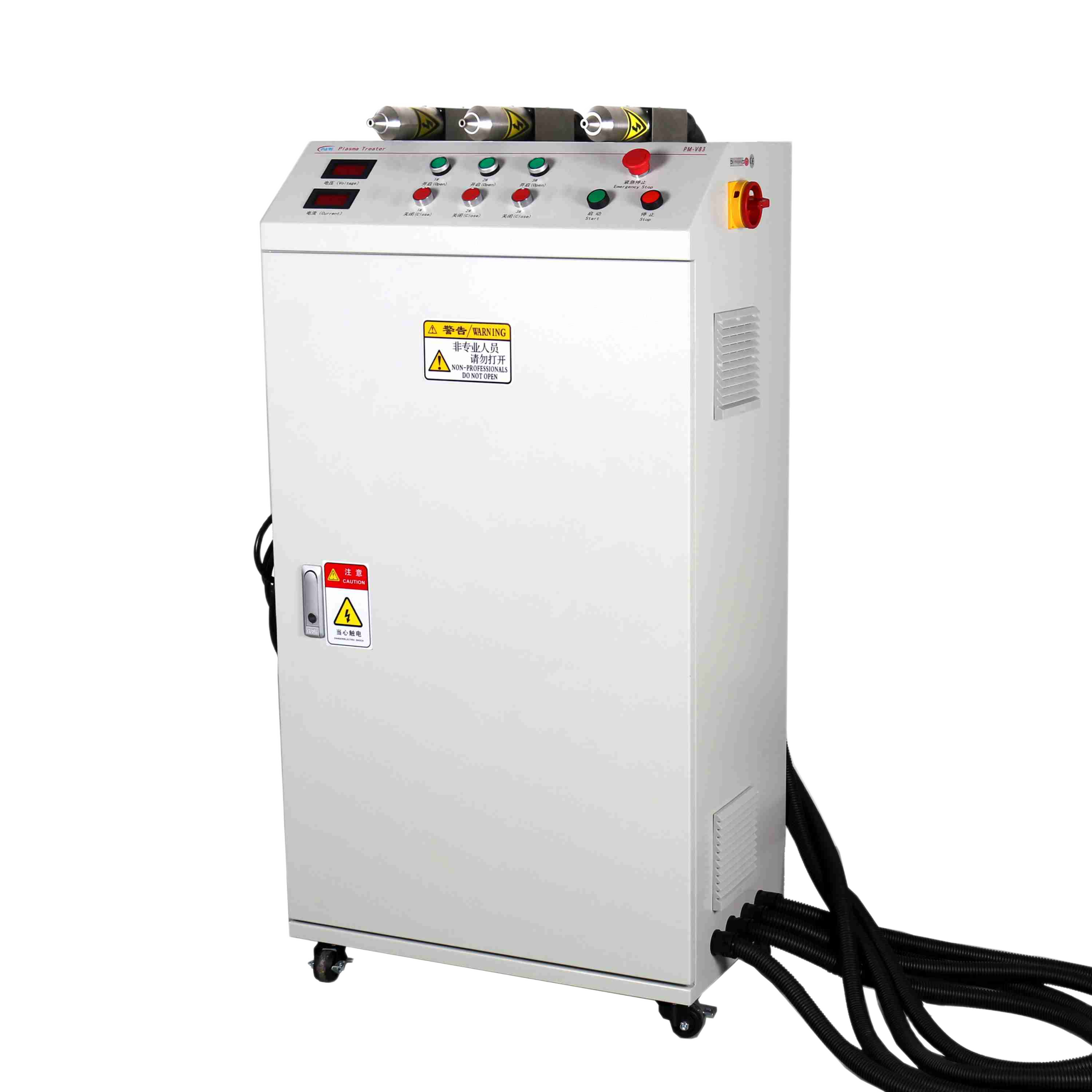

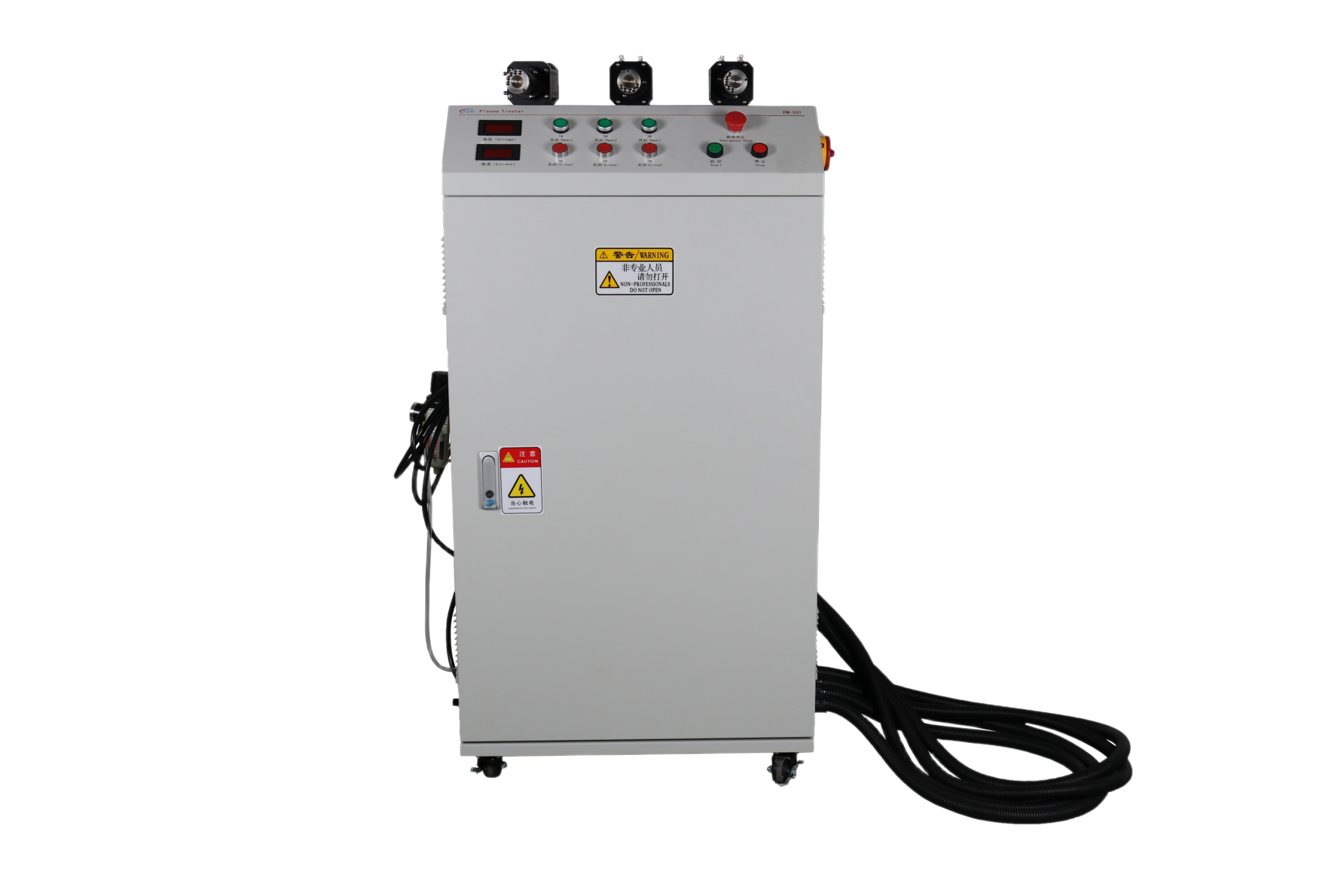

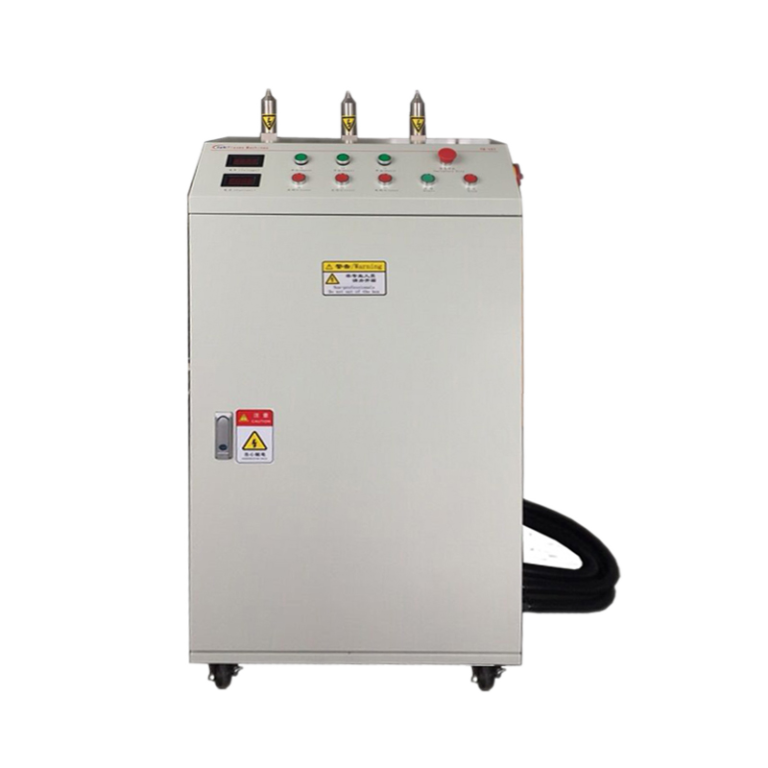

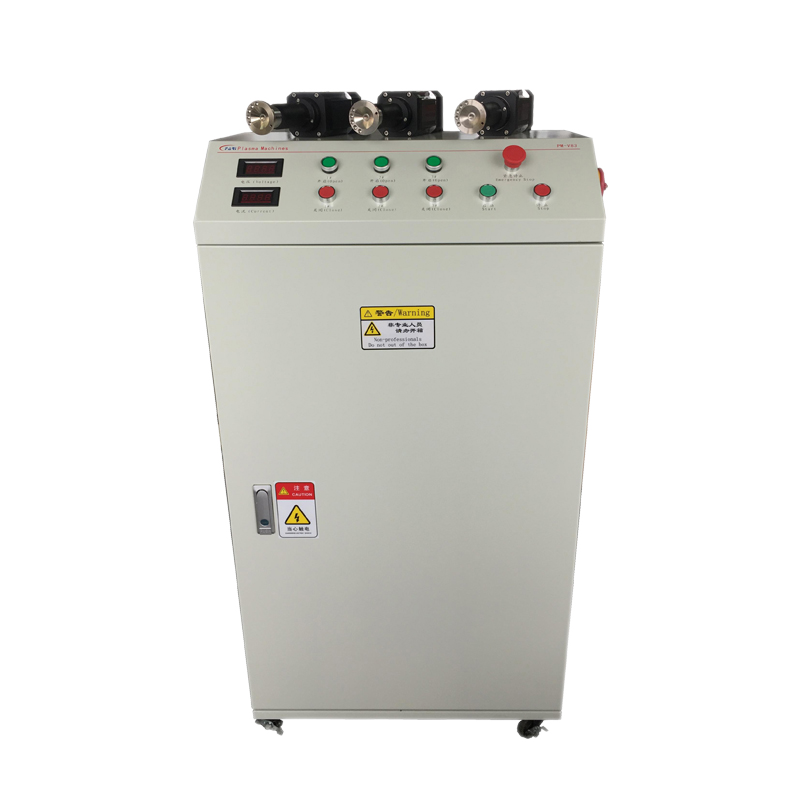

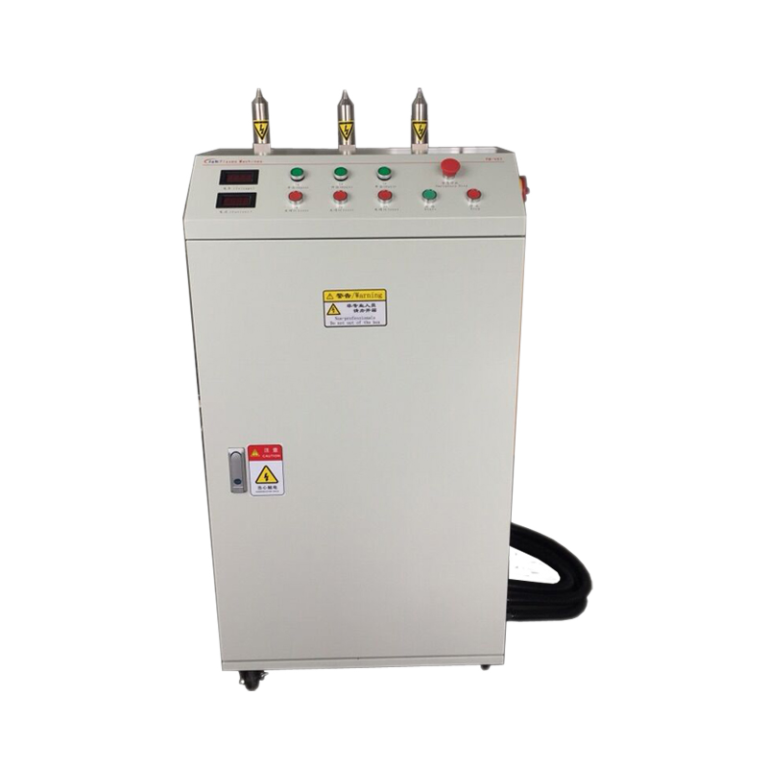

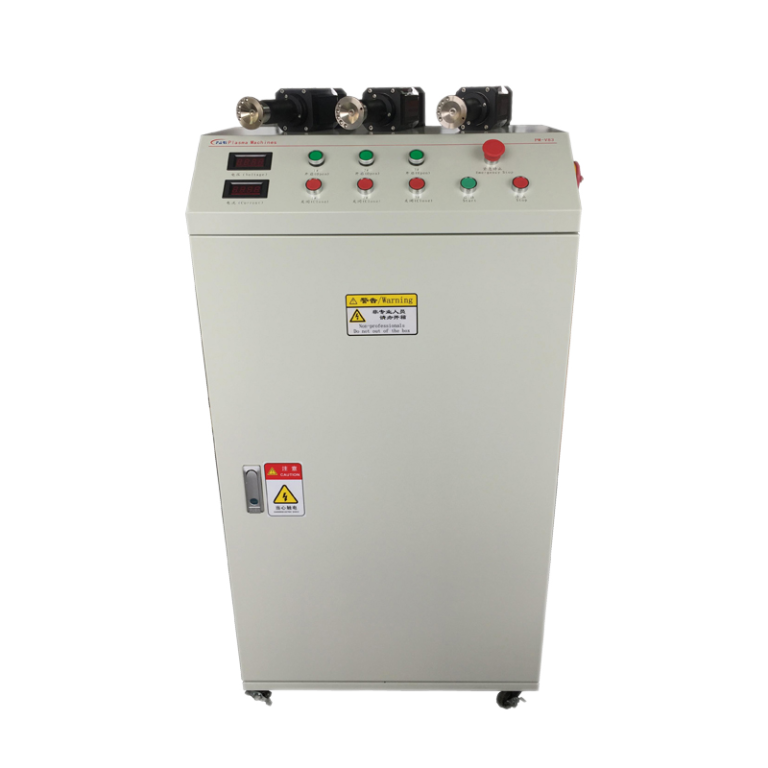

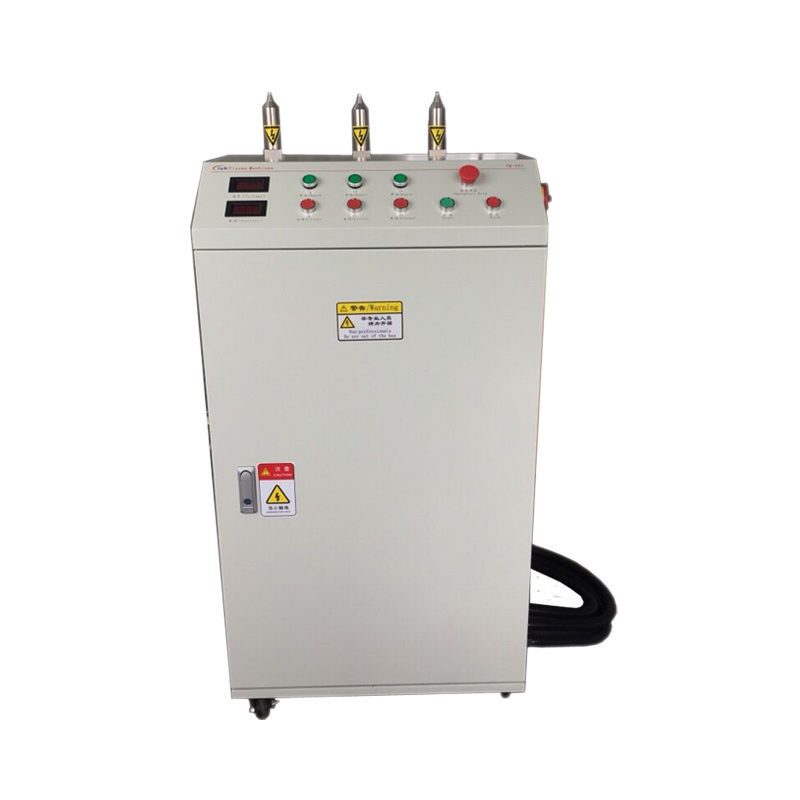

Automatable low-temperature plasma system for surface cleaning and activation. Supports multiple nozzle types, uses compressed air or nitrogen, beltless silent nozzles and cold-arc discharge for safe, eco-friendly operation.
| Product Name | Low-temperature plasma surface cleaner |
| Model | PM-V83 |
| Power Supply | AC 220V, 50/60Hz |
| Power | 1000W × 3 (adjustable) |
| Frequency | 18-25 kHz |
| Dimensions (WxDxH) | 680 mm × 400 mm × 1300 mm |
| Rotating Gun Models | DV1, DVG3 |
| Nozzle Count | 3 |
| Nozzle Treatment Width | 3–5 mm, 7–13 mm, 15–18 mm (optional); 35–40 mm, 55–60 mm, 75–80 mm, 85–90 mm (optional) |
| Inline Capability | Can be integrated with production line equipment |
| Product-to-Nozzle Height | 5–15 mm (recommended 10 ± 2 mm) |
| Cable Length | 3 m (extendable) |
| Compatible Gases | N2, CDA (compressed dry air) etc. |
| Nozzle Weight | 1.5 kg |
| Working Air Pressure | 2.5–3.5 kgf/cm² |
| Machine Weight | 100 kg |
Process gas is energized and converted into a reactive plasma containing ions, electrons, and radicals.
High-energy plasma species reach the material surface and interact with contaminants at the molecular level.
Reactive ions and radicals break down organic residues and surface contaminants through controlled chemical reactions.
The reaction products are converted into volatile compounds and enter the gas phase.
Gaseous by-products desorb from the surface and are evacuated, leaving a clean, activated material surface.
