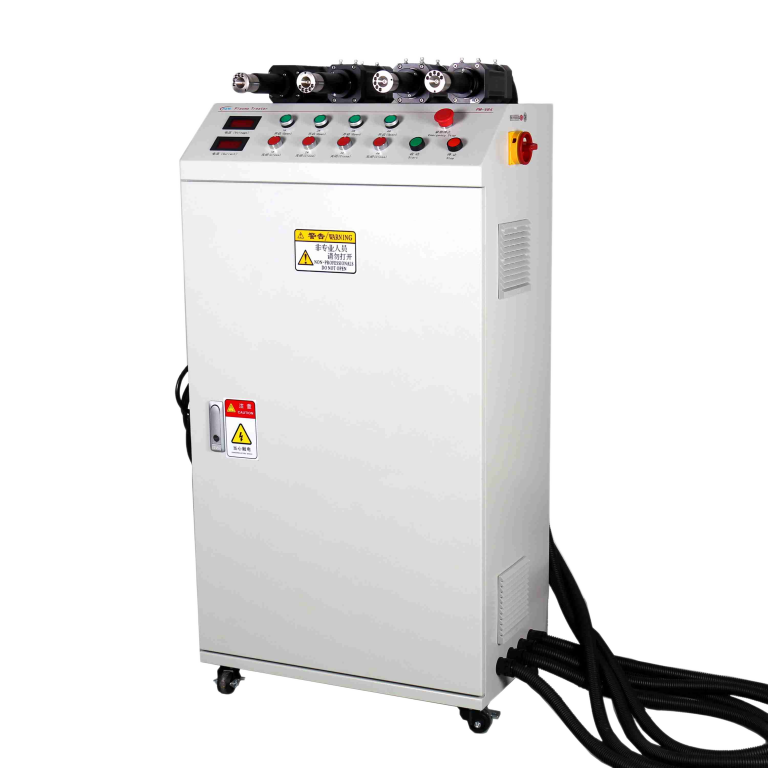

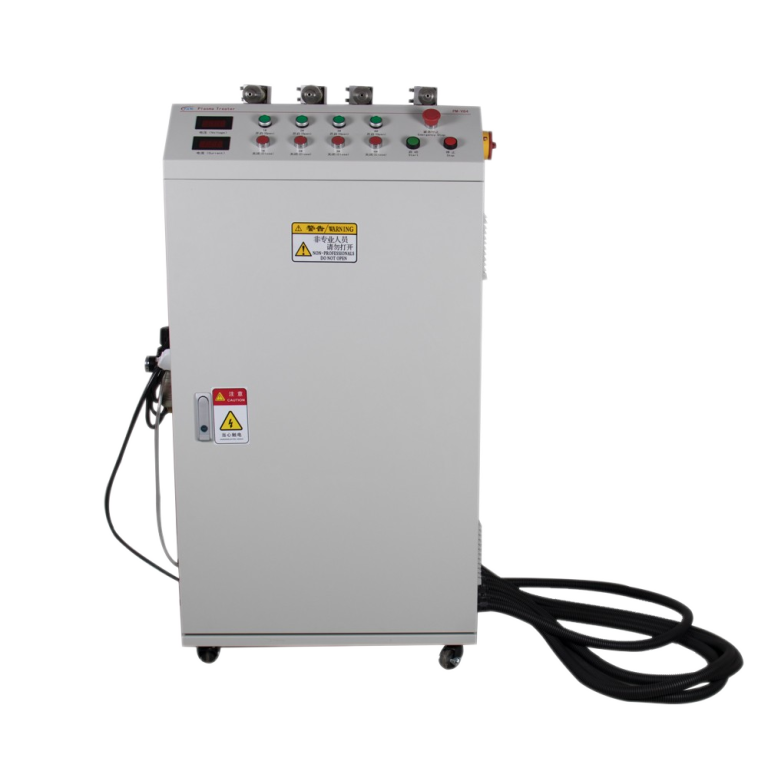

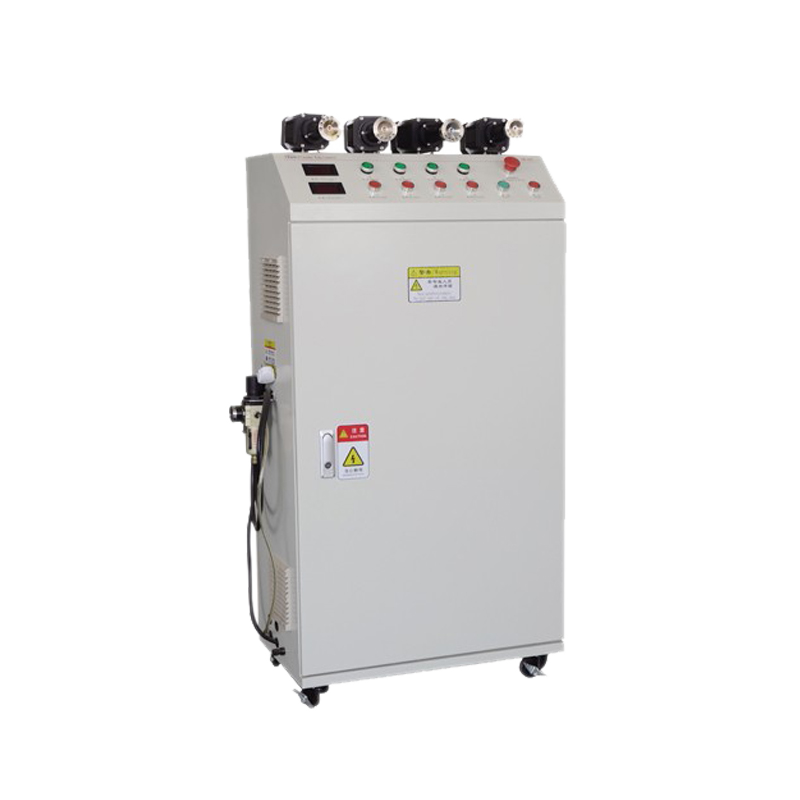

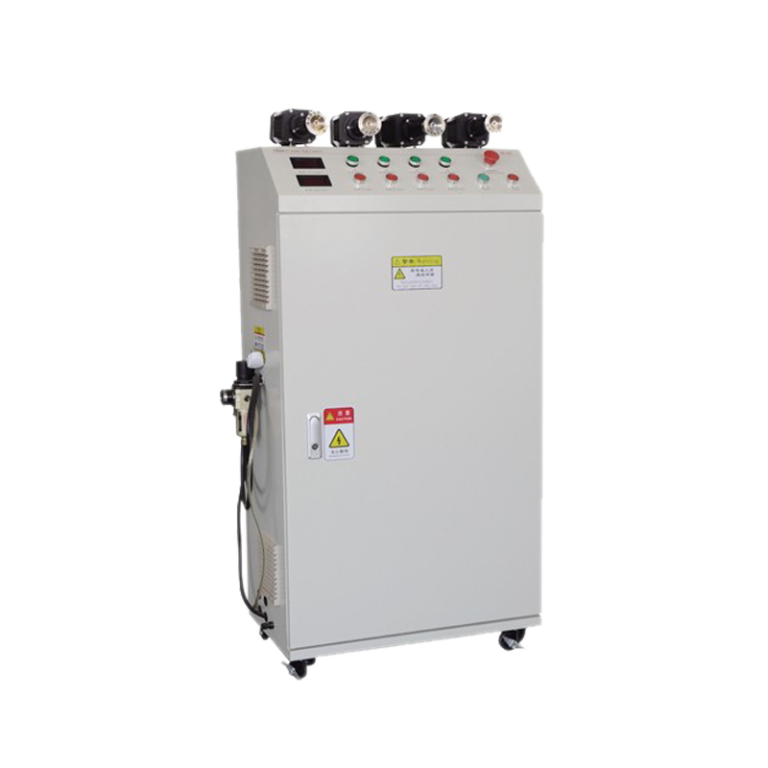

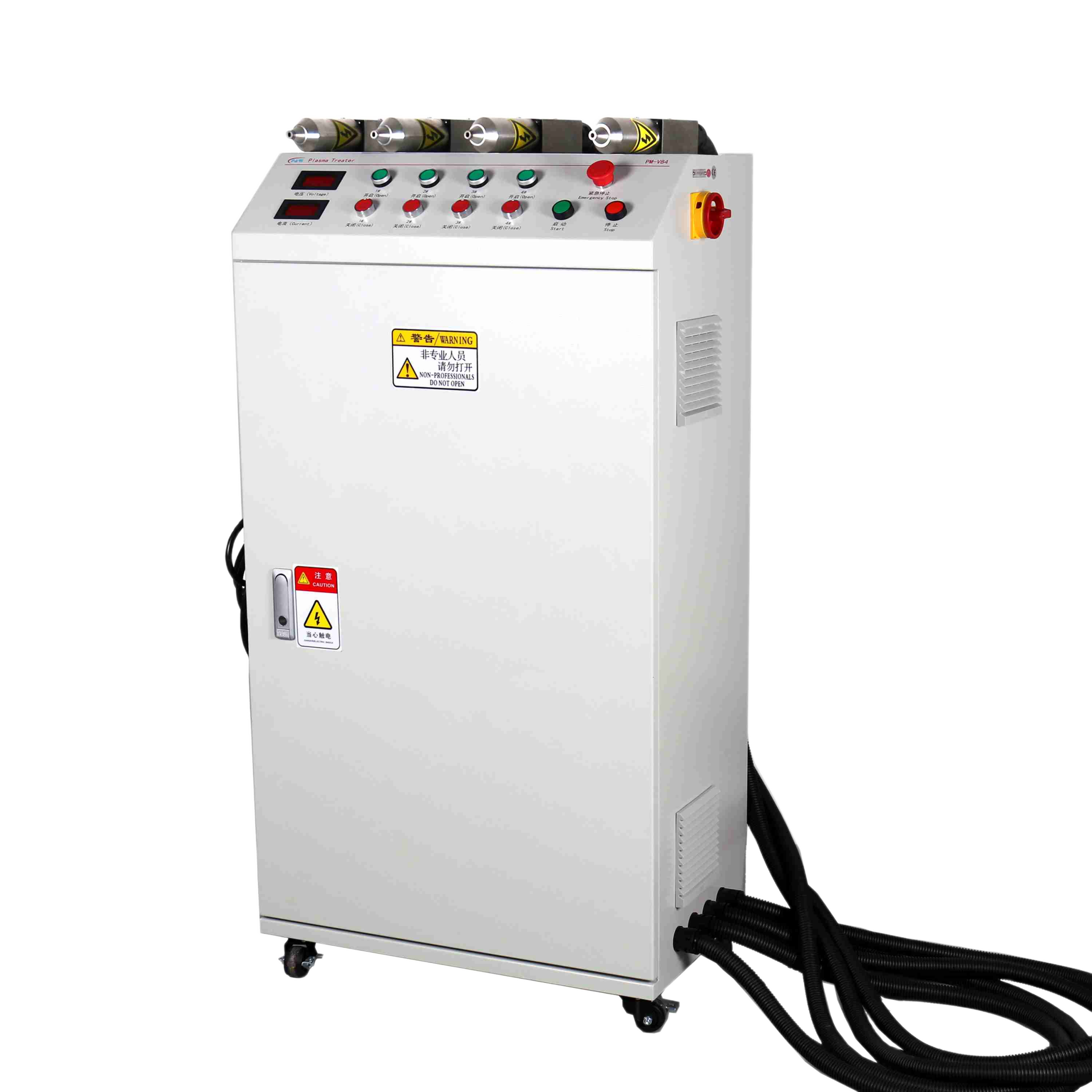

The PM-V84 integrates with production lines for automated surface cleaning and activation. It offers multiple nozzle options, uses compressed air or nitrogen, employs low-temperature cold-arc plasma, and delivers quiet, eco-friendly operation without harmful emissions.
| Product Name | Low-temperature Plasma Surface Cleaner |
| Model | PM-V84 |
| Power Supply | AC 220V, 50/60Hz |
| Power Rating | 1000W × 4 (adjustable) |
| Frequency | 18-25 kHz |
| Dimensions | 680 mm × 400 mm × 1300 mm |
| Number of Nozzles | 4 |
| Nozzle Treatment Widths | 35–40 mm, 55–60 mm, 75–80 mm, 85–90 mm (optional) |
| Line Connectivity | Can link with on-site equipment for inline operation |
| Product-to-Nozzle Distance | 5–15 mm (recommended 10 ± 2 mm) |
| Cable Length | 3 m (extendable) |
| Acceptable Gases | N2, CDA (compressed dry air), etc. |
| Nozzle Weight | 3 kg |
| Air Pressure | 2.5–3.5 kg |
| Total Weight | 120 kg |
Process gas is energized and converted into a reactive plasma containing ions, electrons, and radicals.
High-energy plasma species reach the material surface and interact with contaminants at the molecular level.
Reactive ions and radicals break down organic residues and surface contaminants through controlled chemical reactions.
The reaction products are converted into volatile compounds and enter the gas phase.
Gaseous by-products desorb from the surface and are evacuated, leaving a clean, activated material surface.
