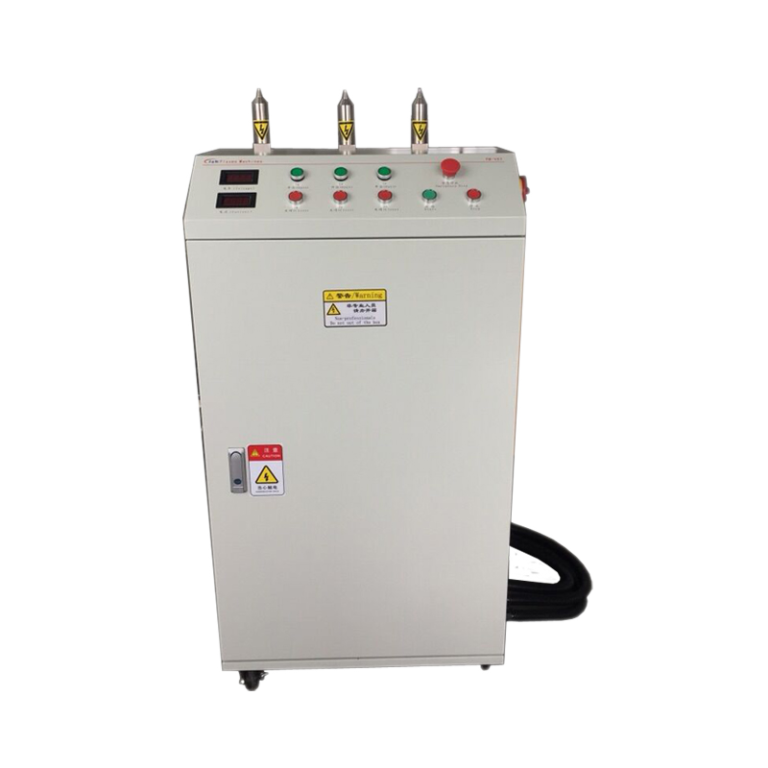

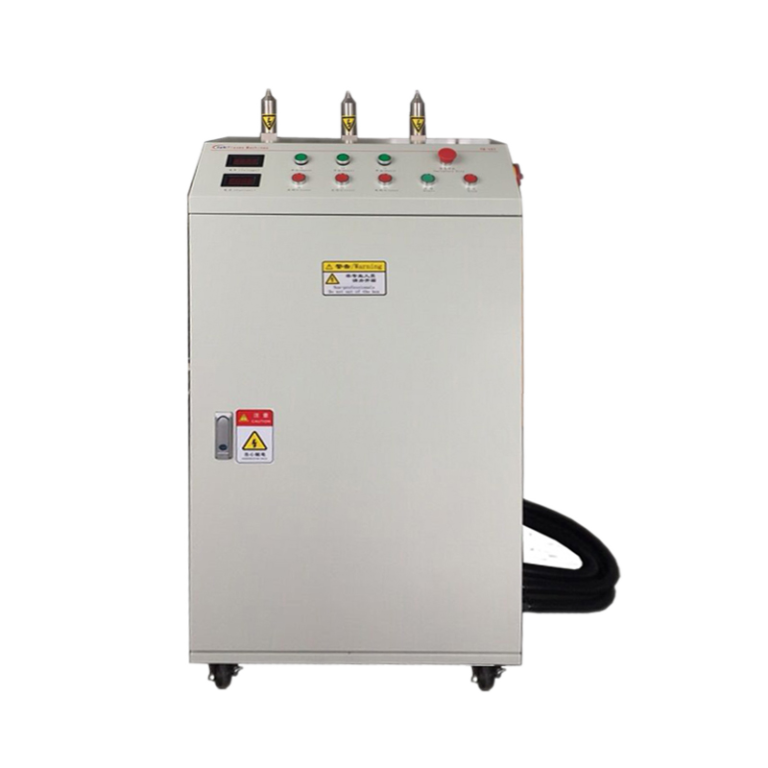

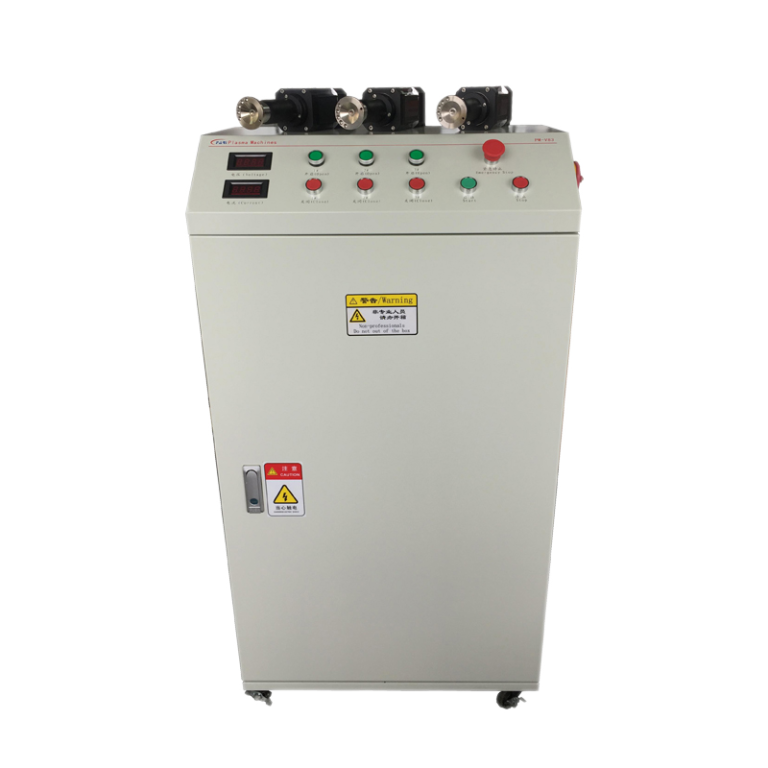

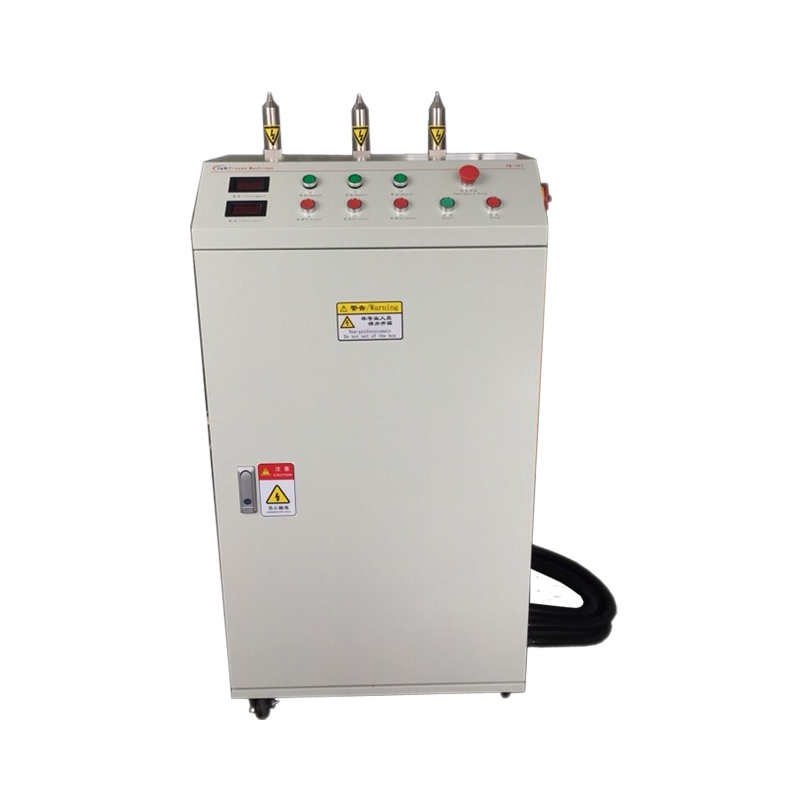

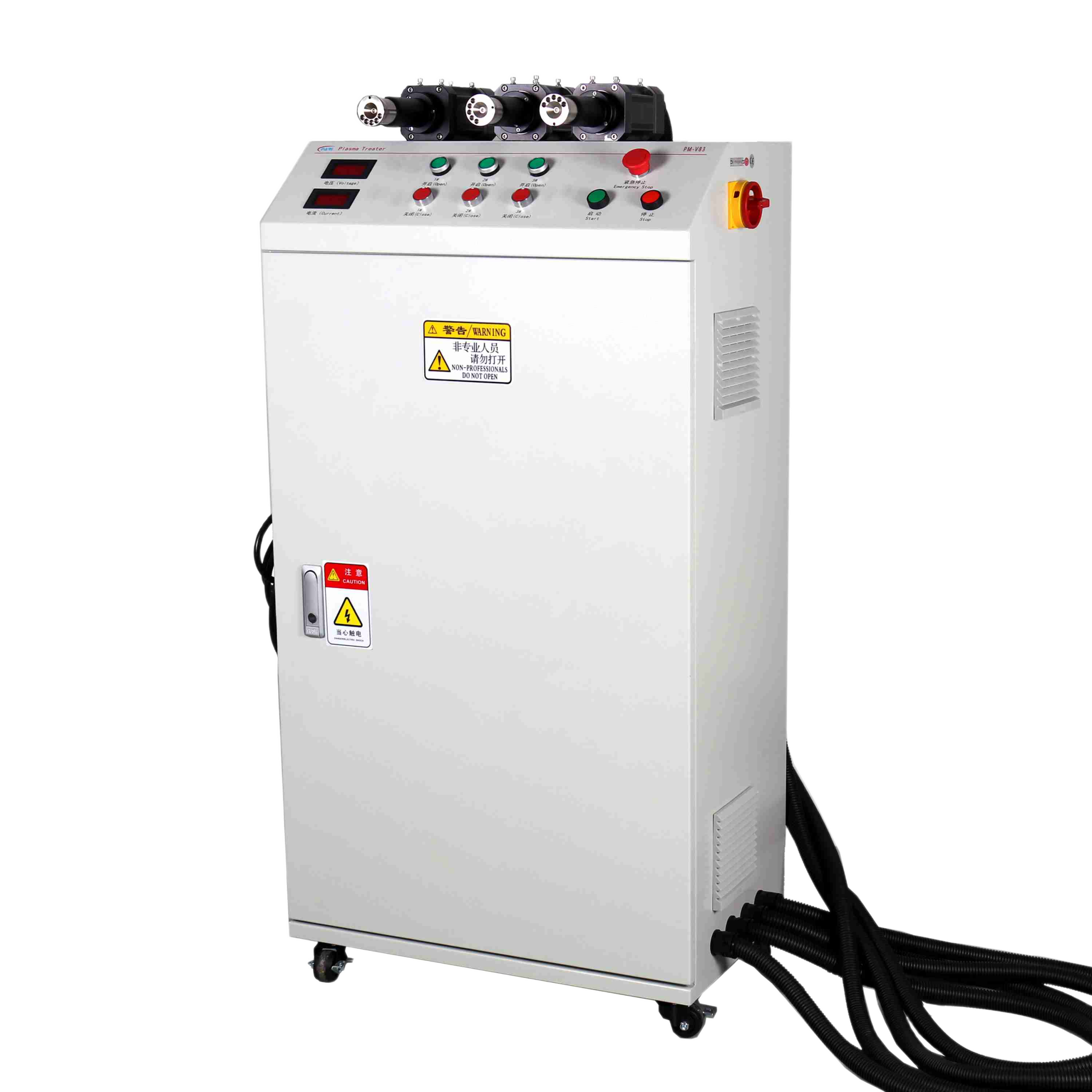

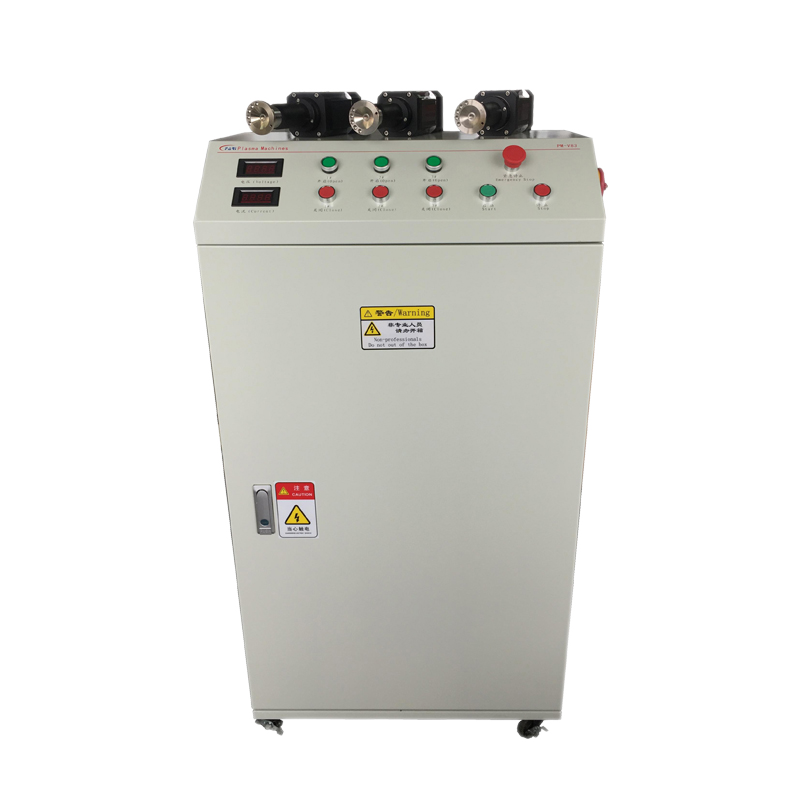

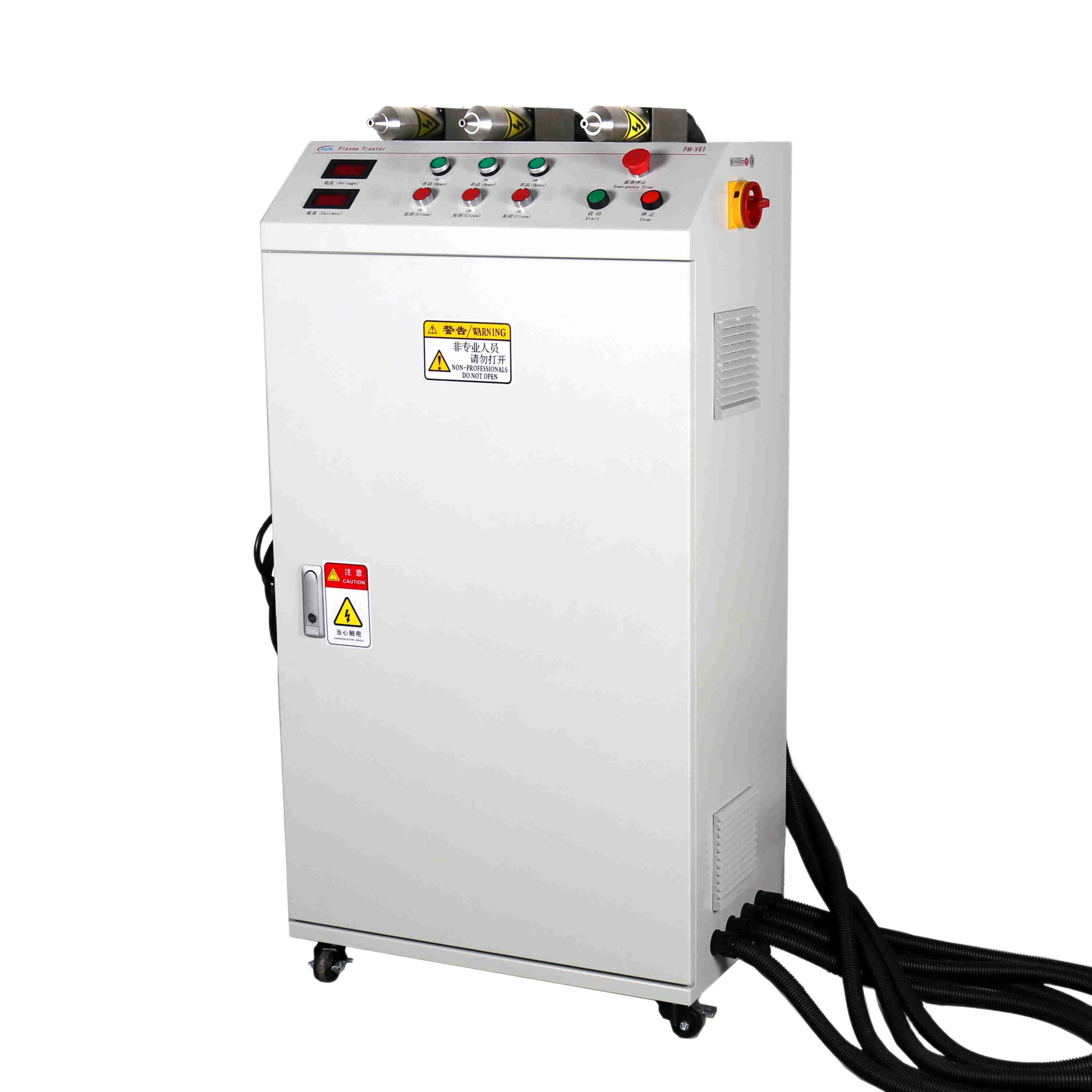

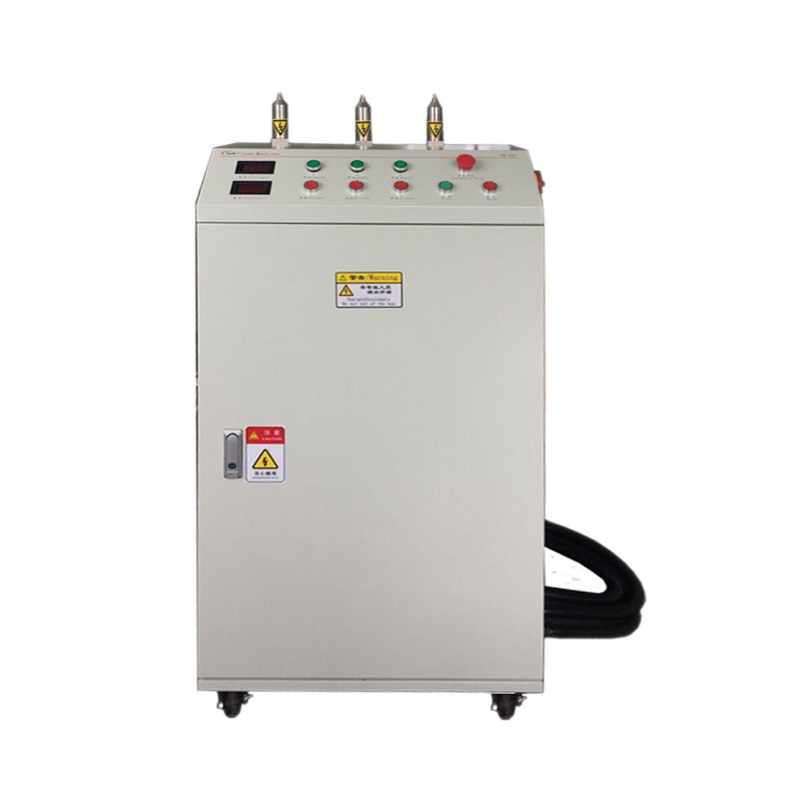

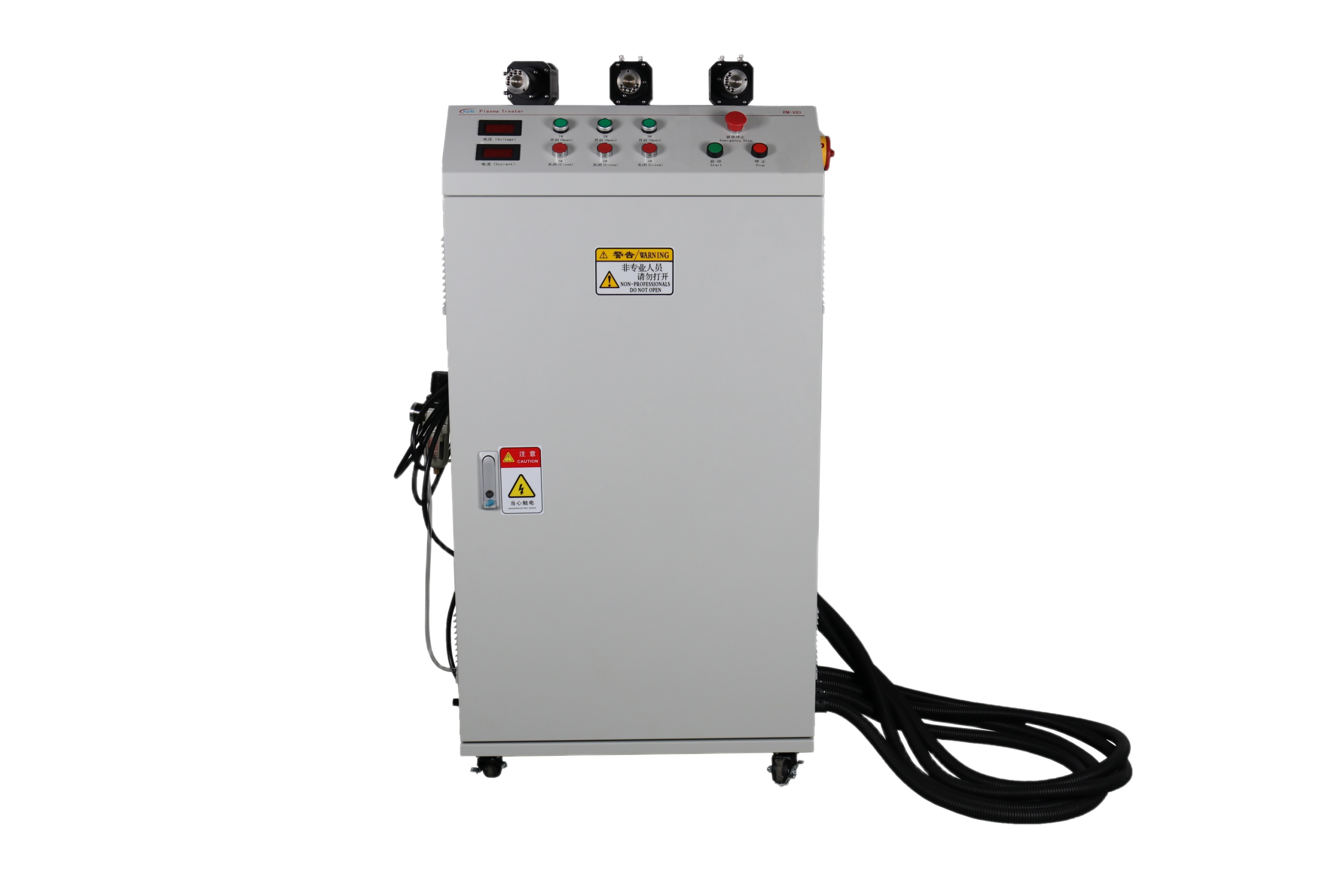

An automatable low-temperature plasma system designed for inline surface treatment and seamless integration into continuous production environments. It supports multiple nozzle configurations and operates with compressed air or nitrogen, featuring beltless silent nozzles and cold-arc discharge for safe, eco-friendly performance.
| Product Name | Low-temperature plasma surface cleaner |
| Model | PM-V83 |
| Power Supply | AC 220V, 50/60Hz |
| Power | 1000W × 3 (adjustable) |
| Frequency | 18-25 kHz |
| Dimensions (WxDxH) | 680 mm × 400 mm × 1300 mm |
| Rotating Gun Models | DV1, DVG3 |
| Nozzle Count | 3 |
| Nozzle Treatment Width | 3–5 mm, 7–13 mm, 15–18 mm (optional); 35–40 mm, 55–60 mm, 75–80 mm, 85–90 mm (optional) |
| Inline Capability | Can be integrated with production line equipment |
| Product-to-Nozzle Height | 5–15 mm (recommended 10 ± 2 mm) |
| Cable Length | 3 m (extendable) |
| Compatible Gases | N2, CDA (compressed dry air) etc. |
| Nozzle Weight | 1.5 kg |
| Working Air Pressure | 2.5–3.5 kgf/cm² |
| Machine Weight | 100 kg |
Process gas is energized and converted into a reactive plasma containing ions, electrons, and radicals.
Energetic plasma species interact with surface molecules and contaminants under controlled vacuum conditions.
Reactive ions and radicals break down organic residues and surface contaminants through controlled chemical reactions.
The reaction products are converted into volatile compounds and enter the gas phase.
Gaseous by-products desorb from the surface and are evacuated, leaving a clean, activated material surface.
