Atmospheric Plasma Treatment for Wire and Cable: Better Printing and Bonding

Atmospheric plasma treatment for wire and cable improves surface wettability before printing, marking, adhesive bonding, sealing and overmolding. Cable jackets are commonly made from PE, PVC, XLPE, TPE, TPU, silicone, rubber, nylon or fluoropolymers. Many of these materials have low surface energy or contain additives that migrate to the surface, making reliable adhesion difficult without pretreatment.

An inline plasma system provides a dry, controllable way to clean and activate the moving cable surface immediately before the next manufacturing step. This article explains the treatment mechanism, typical applications, integration options and the process controls needed for stable production.

Why Cable Printing and Bonding Fail

A cable may look clean while still carrying a weak boundary layer of processing oil, release agent, plasticizer or migrated additive. At the same time, the jacket polymer may be too non-polar for an ink or adhesive to wet. These conditions can cause:

• Inkjet codes, identification marks or printed legends that rub off
• Labels, tapes and adhesive components that lift during aging
• Overmolded connectors or strain-relief sections that delaminate
• Poor sealing at cable glands, potting interfaces or molded transitions
• Inconsistent adhesion between production lots or line speeds

Changing ink or adhesive may improve the symptom without removing the underlying surface variation. Plasma treatment prepares the actual cable jacket so the downstream material can form a more consistent interface.

How Atmospheric Plasma Treats a Moving Cable

An atmospheric plasma generator ionizes compressed air or another process gas and directs the reactive flow through a treatment nozzle. The plasma interacts with the cable surface in three complementary ways:

1. Cleaning: thin organic contamination and weak surface residues are broken down.
2. Activation: polar chemical groups are introduced, raising surface energy and improving wetting.
3. Microscopic modification: controlled nanoscale etching increases the effective bonding area.

The process is dry and operates at atmospheric pressure, so it can be installed directly on a continuous line. Treatment energy is concentrated at the surface; correct distance, speed and power are still essential to protect the jacket and maintain electrical and mechanical performance. For a general overview, read Plasma Surface Treatment Explained.

Wire and Cable Applications

Printing, Coding and Identification

Cables need durable legends for product identification, specifications, traceability and installation. Plasma activation before inkjet, pad printing or other ink-based marking improves wetting and can help the printed layer resist rubbing and handling. The same surface principles also apply to polymer films, as described in our guide to plasma treatment for ink and coating adhesion.

Adhesive Bonding and Labeling

Plasma can prepare cable jackets before bonding labels, tapes, protective sleeves, sensor components or assembly features. Treating close to the adhesive application point minimizes variation caused by surface aging or recontamination.

Overmolding, Connector Sealing and Strain Relief

At an overmolded connector, the cable jacket must bond to the molding compound strongly enough to resist flexing, pull forces and environmental exposure. Plasma treatment can improve the interface before injection molding, potting or sealing. The final result also depends on material compatibility, mold conditions and joint geometry.

Coating and Encapsulation

Specialty cables may receive protective coatings, primers or encapsulants. Raising surface energy helps these materials form a uniform film and reduces dewetting, pinholes and edge pullback.

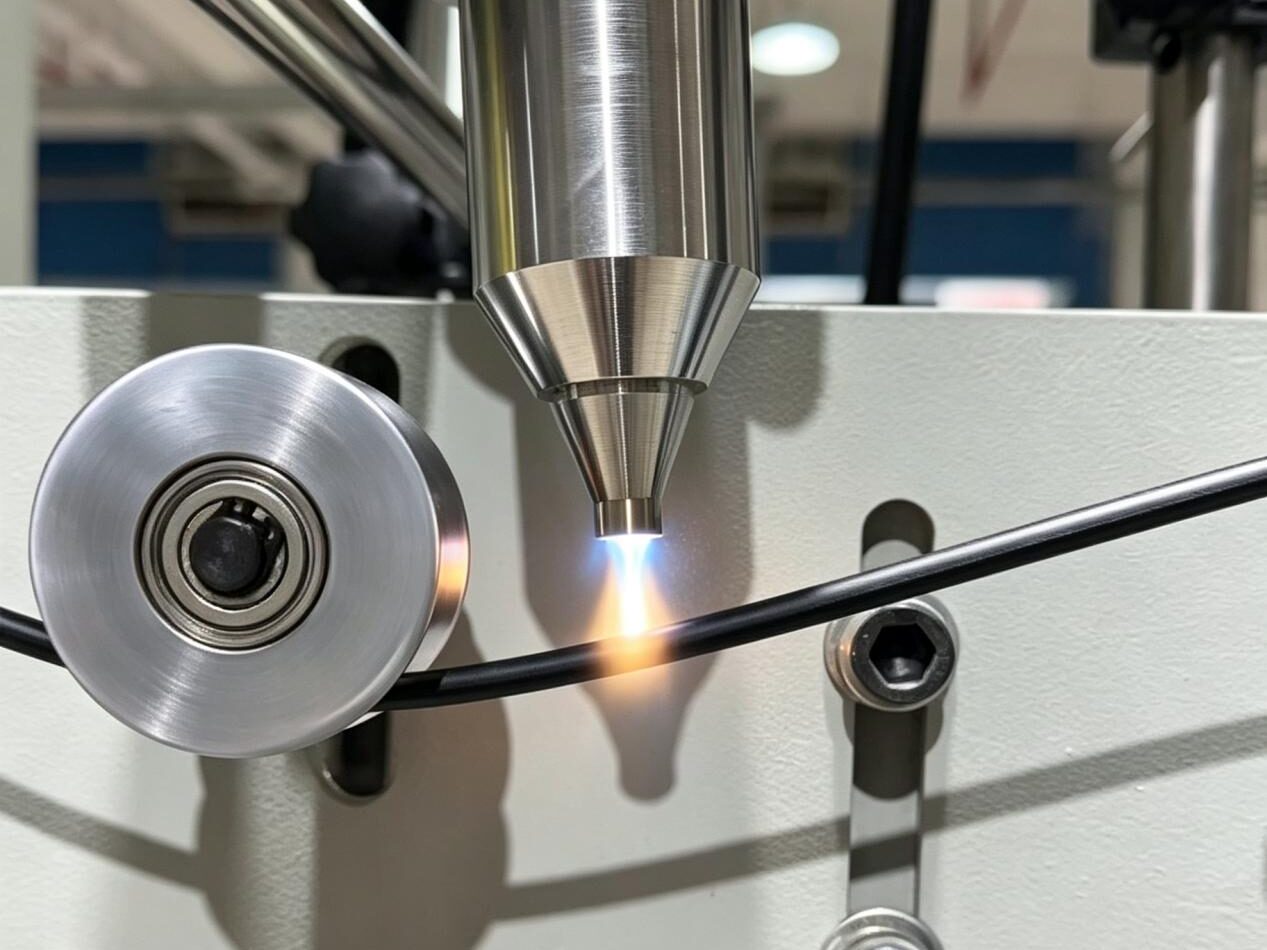

Integrating Plasma into a Continuous Cable Line

The treatment station can be installed after extrusion and cooling, or immediately before printing, bonding or overmolding. A typical inline setup includes cable guides, a plasma nozzle, height adjustment, guarding and line-speed synchronization.

Important integration decisions include:

• Coverage: one nozzle may be sufficient for a narrow print zone, while full circumferential treatment may require rotation or several nozzles.
• Line speed: the required dose must be maintained as production speed changes.
• Stand-off control: cable movement and diameter variation should not move the surface outside the validated treatment distance.
• Recipe management: power, gas flow, nozzle position and speed should be stored by cable family.
• Interlocks: the plasma should stop or reduce output if the cable stops moving.

For higher-volume planning, see 5 Signs Your Production Line Is Ready for Inline Plasma Integration.

Treating the Full Cable Circumference

A single fixed jet activates only the area it reaches. When an application requires full 360-degree bonding or overmolding, the system can use angled nozzles, a multi-head arrangement, cable rotation or a purpose-built ring treatment configuration. The nozzle geometry should be selected around cable diameter, line speed and the required treatment width rather than copied from a flat-part process.

Atmospheric treatment is usually the practical choice for continuous cable because the product passes through the station without a vacuum cycle. The differences between delivery formats are explained in Atmospheric vs. Low-Pressure Plasma.

Compatible Cable Jacket Materials

Atmospheric plasma can be evaluated for PE, PVC, XLPE, TPE, TPU, silicone, rubber, nylon and selected fluoropolymer jackets. There is no universal recipe: fillers, flame retardants, plasticizers, colorants and surface additives can change the response even within the same polymer family.

Before releasing production, manufacturers should test representative cable lots and confirm:

• No visible discoloration, melting or surface damage
• No unacceptable change in insulation or mechanical properties
• Stable surface energy at the target line speed
• Required print, peel, bond or seal performance after aging

Process Validation and Quality Control

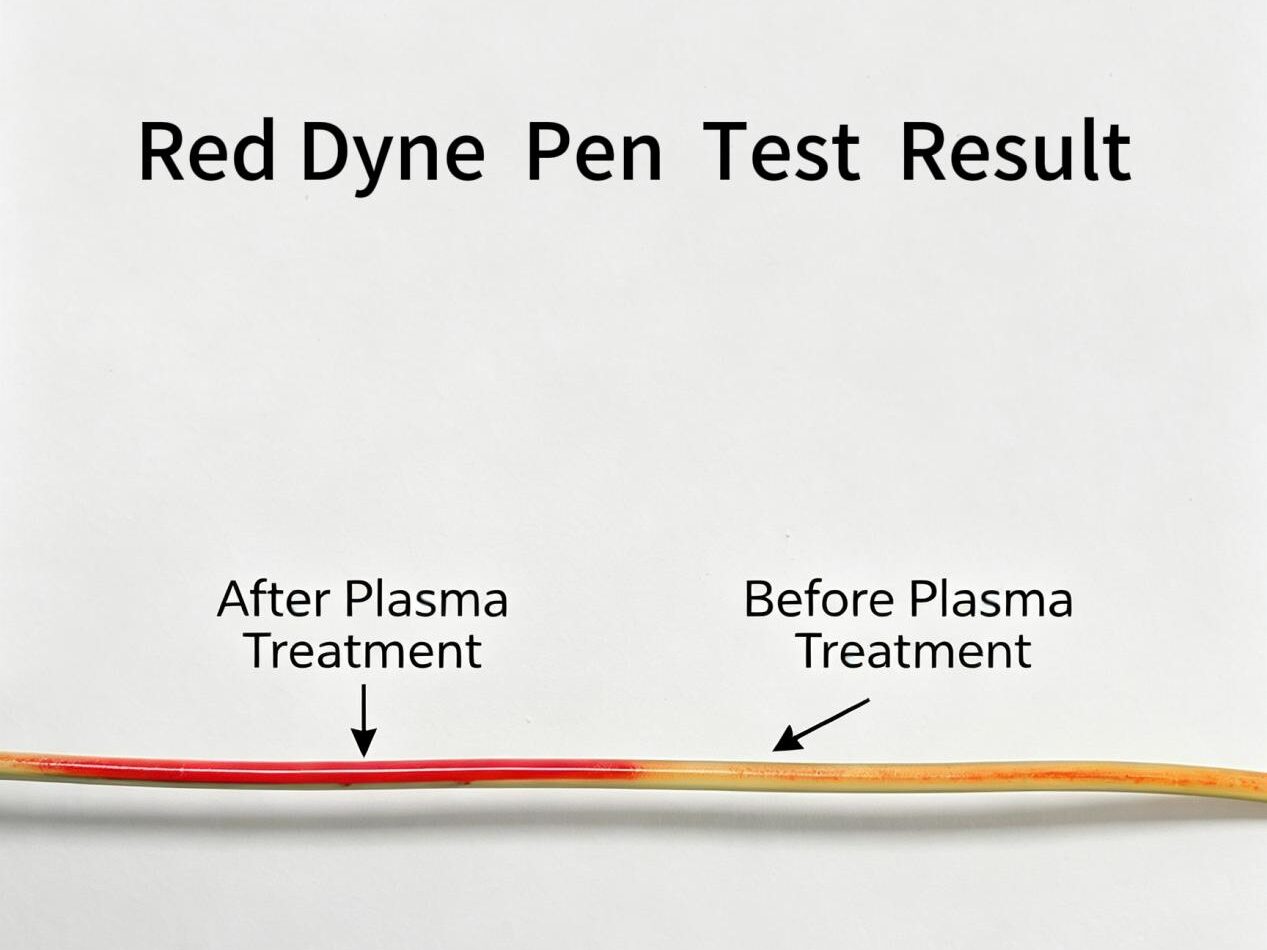

Surface activation is not reliably judged by appearance alone. A fast line-side check can use dyne solution or a dyne pen on a suitable test area. Contact-angle testing on flat reference coupons is useful when direct measurement on a curved cable is difficult.

Surface-energy data should be paired with a functional test such as print rub resistance, tape adhesion, peel strength, overmold pull-off or leak testing. For help choosing a method, review Dyne Ink Testing vs. Contact Angle vs. XPS.

Equipment Features to Specify

• PLC recipe control and production-data logging
• Line-speed input and automatic dose compensation
• Cable-stop detection and thermal protection logic
• Adjustable guides for multiple cable diameters
• Single-, multi-nozzle or circumferential treatment options
• Compact mounting for retrofit installations
• Accessible nozzle maintenance and safe guarding

Process gas also affects surface chemistry. The plasma treatment gas selection guide provides additional context for air, oxygen, nitrogen and argon processes.

Frequently Asked Questions

Will atmospheric plasma damage cable insulation?

A correctly designed process can activate the surface without damaging the bulk insulation. The safe operating window depends on jacket material, wall thickness, cable speed, nozzle distance and power. Visual, electrical and mechanical tests should be included in qualification.

Can the system connect to an existing extrusion or printing line?

Yes. Atmospheric plasma stations are commonly configured as inline modules. The integration should include mechanical guides, guarding, line-speed synchronization and a stop interlock so a stationary cable is not overexposed.

Does one recipe work for every cable material?

No. PE, PVC, XLPE, TPE, TPU, silicone and fluoropolymer formulations respond differently. Additives and colorants can also change the process window, so recipes should be validated and stored by cable family.

Are chemical primers still required?

In some applications plasma can reduce or eliminate a primer step, but this depends on the ink, adhesive, overmold compound and performance requirement. The decision should be based on comparative adhesion and aging tests.

How should treatment consistency be monitored?

Monitor equipment parameters such as power, gas flow, distance and line speed, then confirm output with a surface-energy check and a functional adhesion test. Trending both process and quality data makes nozzle wear, contamination and setup drift easier to detect.

Configure an Inline Cable Treatment Process

The right system depends on cable material, diameter, line speed, required coverage and the downstream print or bonding process. Explore our plasma treatment products or contact FARI Plasma to arrange sample testing and discuss an inline or customized cable-treatment station.
